압축 피팅 내부 스레드 팔꿈치

/ 제품 / 스테인레스 스틸 튜브 피팅 / 튜브-암 파이프 / 압축 피팅 내부 스레드 팔꿈치

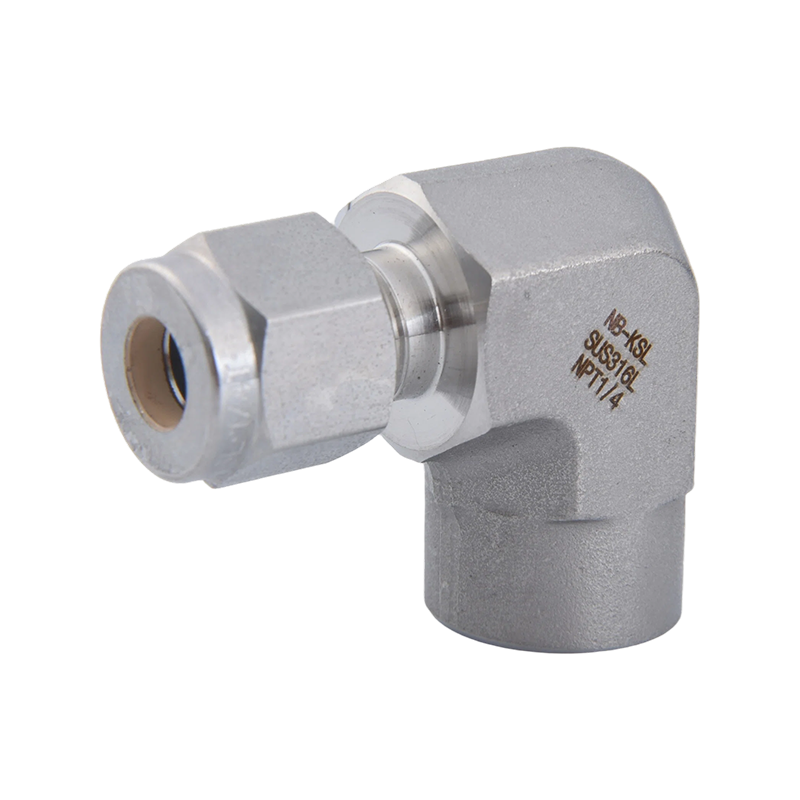

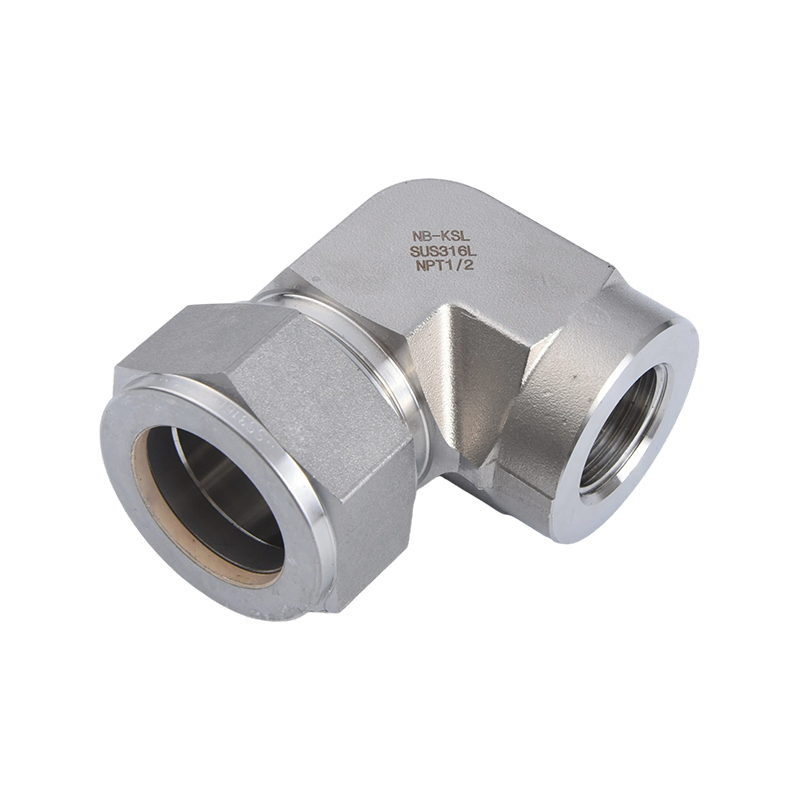

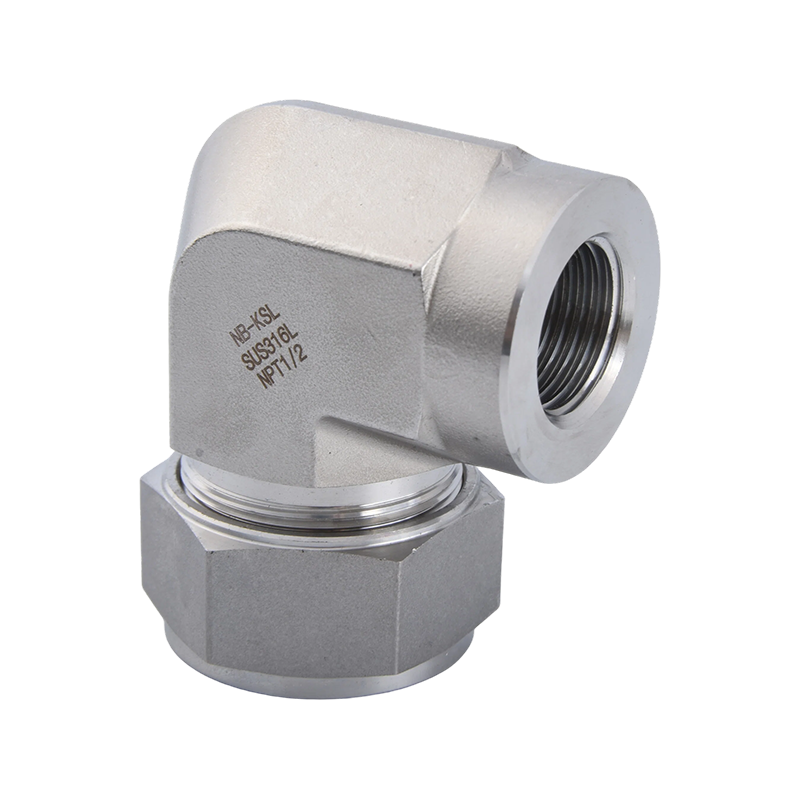

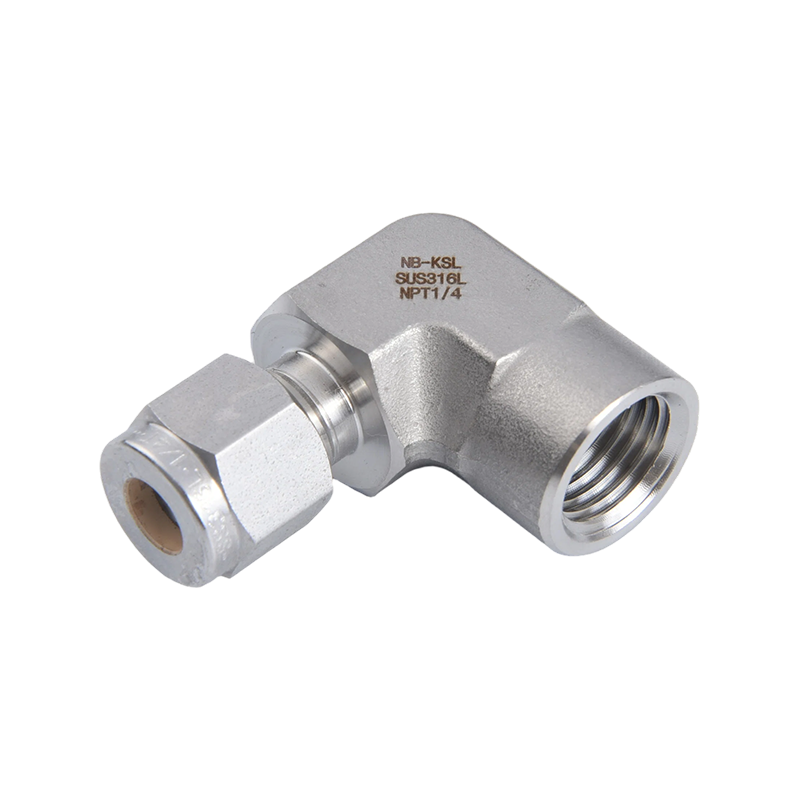

압축 피팅 내부 스레드 팔꿈치

고품질의 316L 오스테나이트계 스테인리스강을 사용하고 첨단 페룰형 메카니컬 씰 설계를 적용하여 고압, 고온, 부식성이 높은 환경에서도 우수한 씰링 성능과 기계적 안정성을 유지하는 제품입니다. 일반 304 스테인레스 스틸에 비해 316L 스테인레스 스틸은 내식성 등급이 더 높으며 특히 산성, 알칼리성 및 염분 환경에서 장기간 안정적인 성능을 유지합니다. 정밀 가공된 일체형 본체 구조에 전면 페럴, 후면 페럴, 잠금 너트가 결합되어 완전한 연결 시스템을 형성하는 것이 특징입니다. 커넥터 본체는 고정밀 CNC로 가공되어 부드러운 내부 흐름 채널을 생성합니다. 전면 페룰은 주로 밀봉 기능을 제공하여 설치 중 축 방향 압축을 통해 파이프 표면과 금속 간 긴밀한 접촉을 형성하여 매우 안정적인 밀봉을 달성합니다. 후면 페룰은 주로 기계적 지지 및 잠금 기능을 제공하여 파이프를 단단히 고정하고 연결부의 진동 저항을 향상시킵니다.

  • 설명
  • 문의하기

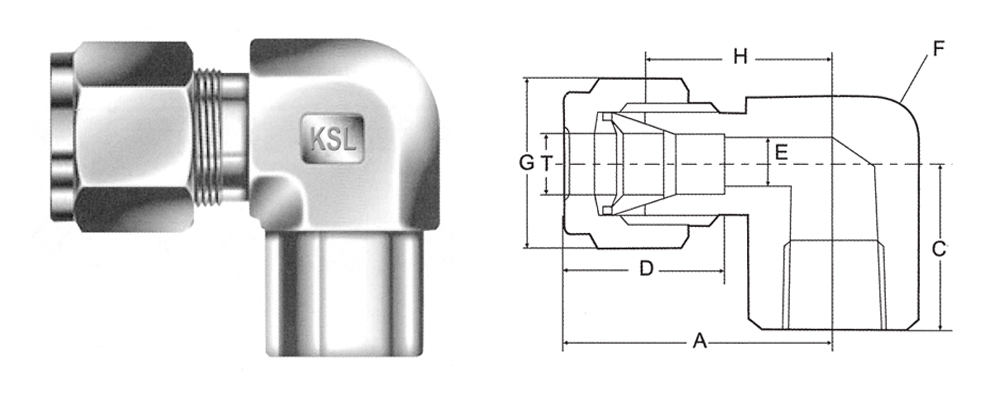

여성 팔꿈치

(미터법)

카탈로그 번호

T 튜브 O.D.

PT-NPT 남성 파이프 크기

A

C

D

E

E2

F

G

H

FE-6-1

6

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

FE-6-2

6

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

FE-6-3

6

3/8

31.7

22.4

15.8

4.8

15

21

14

23.9

FE-6-4

6

1/2

35.3

28.5

15.8

4.8

18.5

28

14

27.5

FE-8-1

8

1/8

28.7

19.1

16.7

6.4

8

15

16

21

FE-8-2

8

1/4

30.1

22.4

16.7

6.4

11

17

16

23

FE-8-3

8

3/8

31.7

22.4

16.7

6.4

15

21

16

24

FE-8-4

8

1/2

35.7

28.5

16.7

6.4

18.5

28

16

27.5

FE-10-1

10

1/8

31.6

21

19.6

7.9

8

17

19

24

FE-10-2

10

1/4

31.6

22.4

19.6

7.9

11

17

19

24

FE-10-3

10

3/8

32.6

22.4

19.6

7.9

15

21

19

25

FE-10-4

10

1/2

36.1

28.5

19.6

7.9

18.5

28

19

28.5

FE-12-1

12

1/8

36.7

22.4

23.8

9.5

8

21

22

25.9

FE-12-2

12

1/4

36.7

22.4

23.8

9.5

11

21

22

25.9

FE-12-3

12

3/8

36.7

22.4

23.8

9.5

15

21

22

25.9

FE-12-4

12

1/2

39.3

28.5

23.8

9.5

18.5

28

22

28.5

FE-12-6

12

3/4

42.8

33.5

23.8

9.5

21.8

32

22

32

FE-14-3

14

3/8

38.8

28

24.8

11.1

15

24

27

28

FE-14-4

14

1/2

39.3

28.5

24.8

11.1

18.5

28

27

28.5

FE-14-6

14

3/4

42.8

33.5

24.8

11.1

21.8

32

27

32

FE-15-3

15

3/8

38.4

28

24.4

11.9

15

24

27

28

FE-15-4

15

1/2

38.9

28.5

24.4

11.9

18.5

28

27

28.5

FE-15-6

15

3/4

42.4

33.5

24.4

11.9

21.8

32

27

32

FE-16-3

16

3/8

38.4

28

24.4

12.7

12.7

24

27

28

FE-16-4

16

1/2

38.9

28.5

24.4

12.7

18.5

28

27

28.5

FE-16-6

16

3/4

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-18-3

18

3/8

39.3

25.4

24.8

15.1

15

28

30

28.5

FE-18-4

18

1/2

39.3

28.4

24.8

15.1

18.5

28

30

28.5

FE-18-6

18

3/4

42.8

33.5

24.8

15.1

21.8

32

30

32

FE-20-4

20

1/2

43

33.5

25.5

15.9

18.5

32

32

32.5

FE-20-6

20

3/4

43

33.5

25.5

15.9

21.8

32

32

32.5

FE-22-4

22

1/2

43

33.5

25.5

18.3

18.5

32

32

32.5

FE-22-6

22

3/4

43

33.5

25.5

18.3

21.8

32

32

32.5

FE-25-4

25

1/2

47.7

35

31.7

21.8

18.5

34.5

38

35

FE-25-6

25

3/4

47.7

35

31.7

21.8

21.8

34.5

38

35


(소수)

FE-02-1

1/4

1/8

27.4

19.1

15.8

4.8

8

15

14

19.6

FE-02-2

1/4

1/4

30.2

22.4

15.8

4.8

11

17

14

22.4

FE-02-3

1/4

3/8

30.2

23.9

15.8

4.8

15

21

14

22.4

FE-02-4

1/4

1/2

36.3

27.5

15.8

4.8

18.5

28

14

28.5

FE-03-1

3/8

1/8

30.7

19.8

19.6

7.1

8

17

17

23.1

FE-03-2

3/8

1/4

31.6

22.4

19.6

7.1

11

17

17

24

FE-03-3

3/8

3/8

32.6

22.4

19.6

7.1

15

21

17

25

FE-03-4

3/8

1/2

36.1

28.5

19.6

7.1

18.5

28

17

28.5

FE-04-1

1/2

1/8

36.1

22.4

23.4

10.4

8

21

22

25.9

FE-04-2

1/2

1/4

36.1

22.4

23.4

10.4

11

21

22

25.9

FE-04-3

1/2

3/8

36.1

22.4

23.4

10.4

15

21

22

25.9

FE-04-4

1/2

1/2

38.7

28.5

23.4

10.4

18.5

28

22

28.5

FE-04-6

1/2

3/4

42.2

33.5

23.4

10.4

21.8

32

22

32

FE-05-6

5/8

1/2

42.4

33.5

24.4

12.7

21.8

32

27

32

FE-06-4

3/4

3/4

38.9

28.4

24.4

15.7

18.5

28

30

28.5

FE-06-6

3/4

3/4

42.4

33.5

24.4

15.7

21.8

32

30

32

FE-08-6

1"

3/4

47.7

35

31.7

22.4

22.4

34.5

38

35

회사 소개
Ningbo Keshengli Stainless Steel Valve Co., Ltd.
Ningbo Keshengli Stainless Steel Valve Co., Ltd.

It is 압축 피팅 내부 스레드 팔꿈치 Suppliers and 압축 피팅 내부 스레드 팔꿈치 Factory.Our company specializes in the manufacturing and sales of stainless steel pipe fittings and valves in national (GB), American (ANSI/ASME), and British (BS) standards. We are equipped with advanced CNC machining centers, material testing and heat treatment facilities, a skilled technical team, and a robust production workforce. With a sound quality management system and excellent after-sales service, we sincerely serve customers worldwide.

Our main products include: ferrule-type fittings, threaded fittings, instrument fittings, instrument needle valves, instrument ball valves, ferrule needle valves, ferrule ball valves, compact high-pressure instrument needle valves, compact high-pressure instrument ball valves, and high-pressure check valves. The primary material is SS316 stainless steel. These products are widely used in petrochemical, petroleum, electric power, pharmaceutical, food, papermaking, marine, and general machinery industries.

We strictly control product quality at every stage and are committed to delivering superior quality through advanced technology and professional management. Adhering to the business philosophy of "Quality First, Customer Supreme, Integrity Foremost," we strive to build the "NB-KSL" brand image, better serve our customers, and work together with you to create a prosperous future.
