316L 스테인레스 스틸 외부 스레드 파고다 커넥터

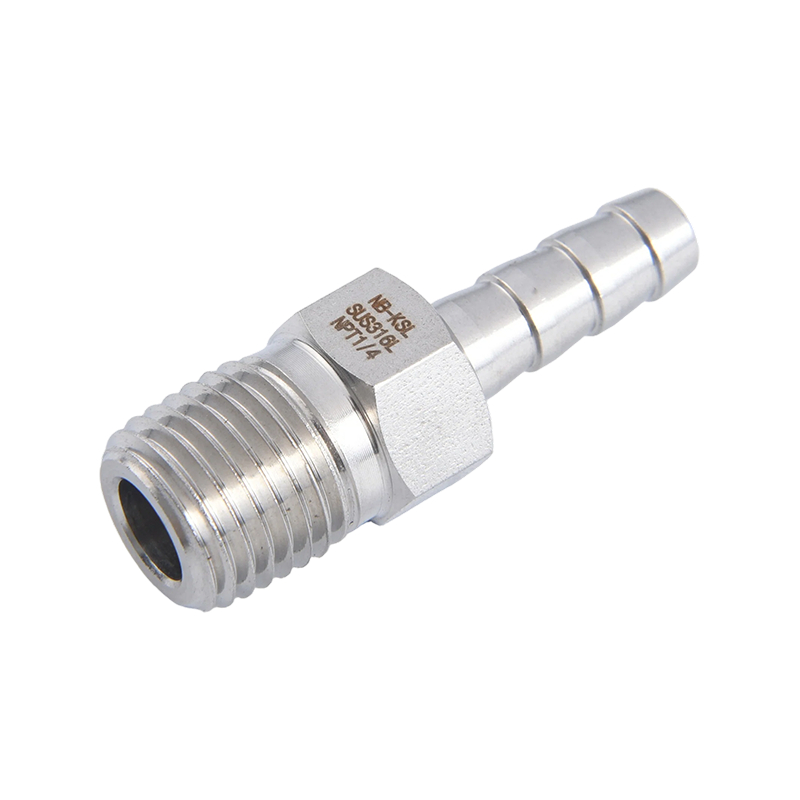

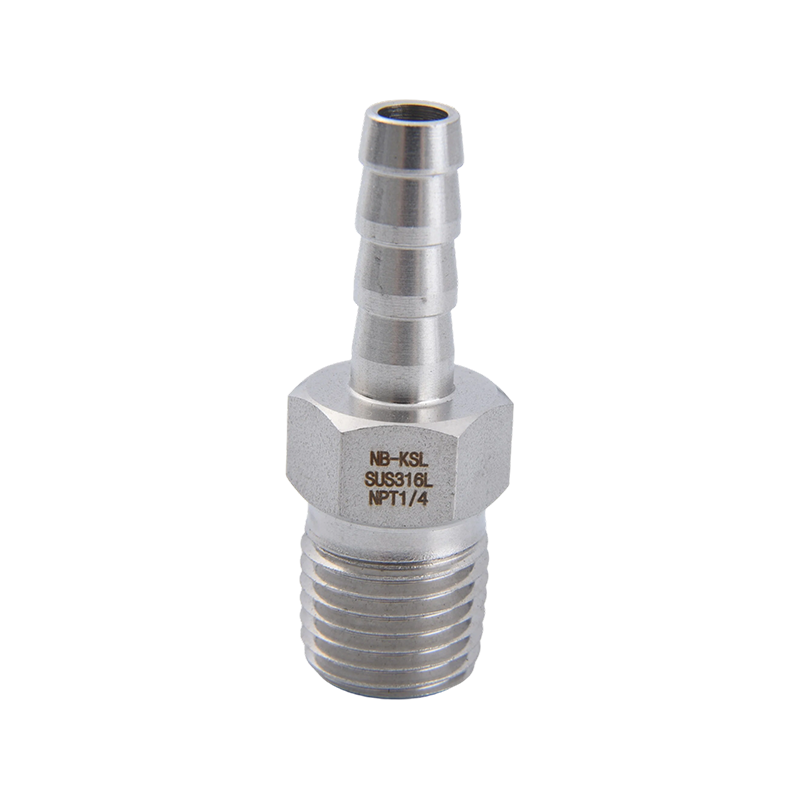

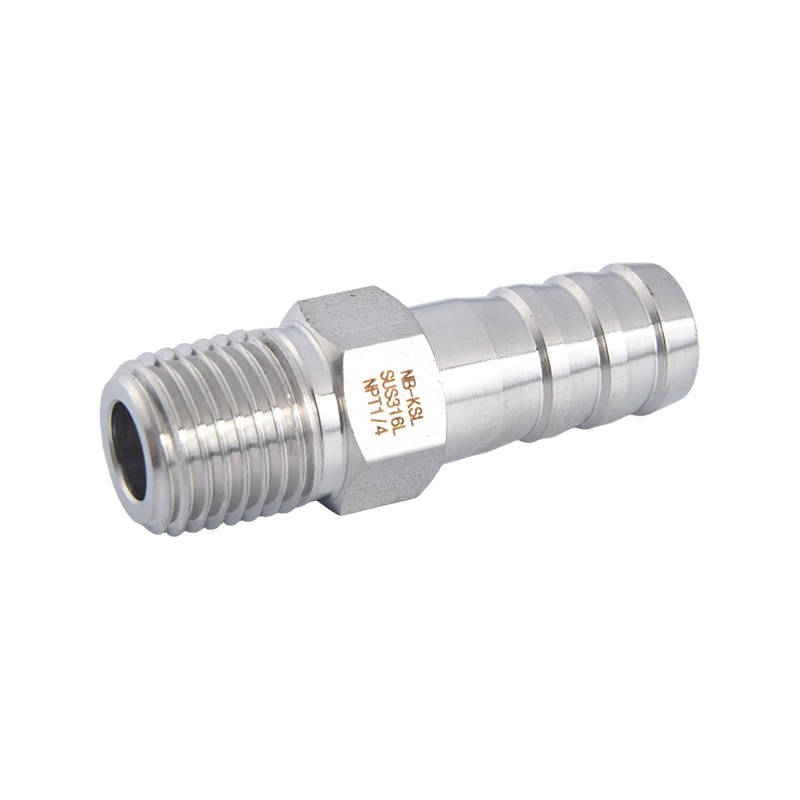

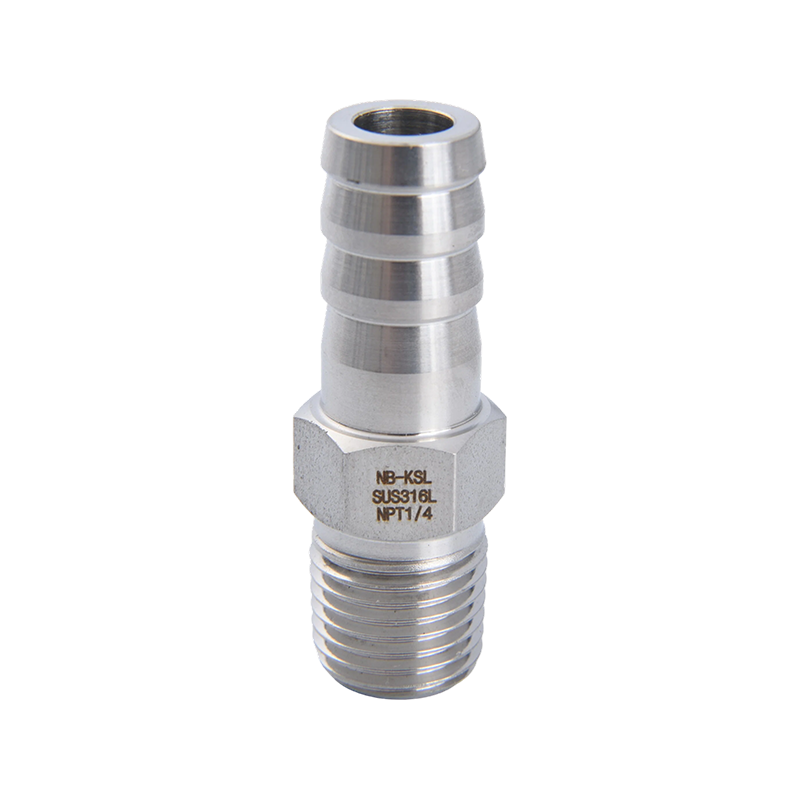

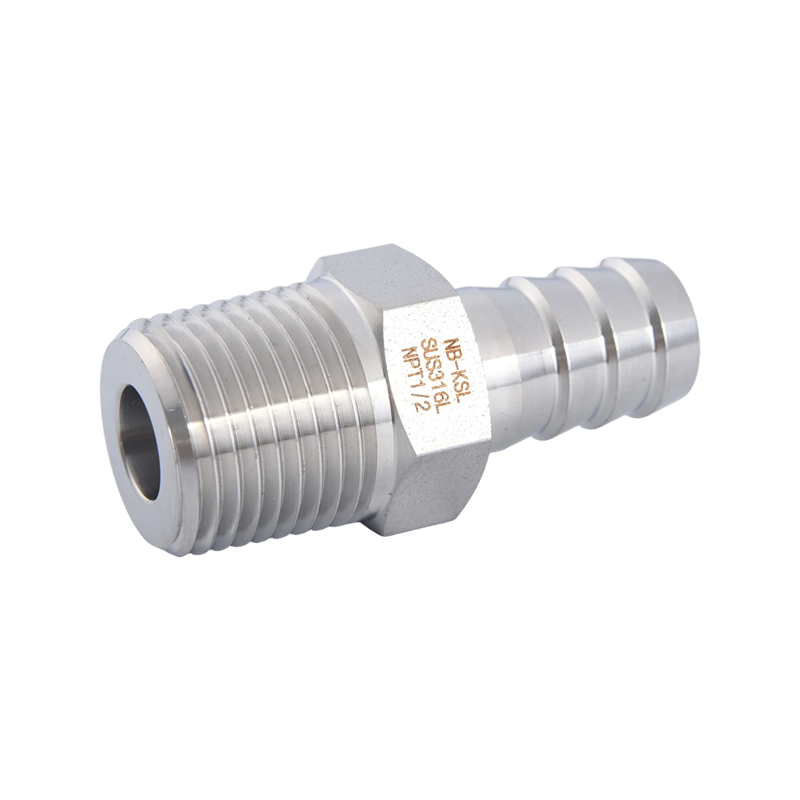

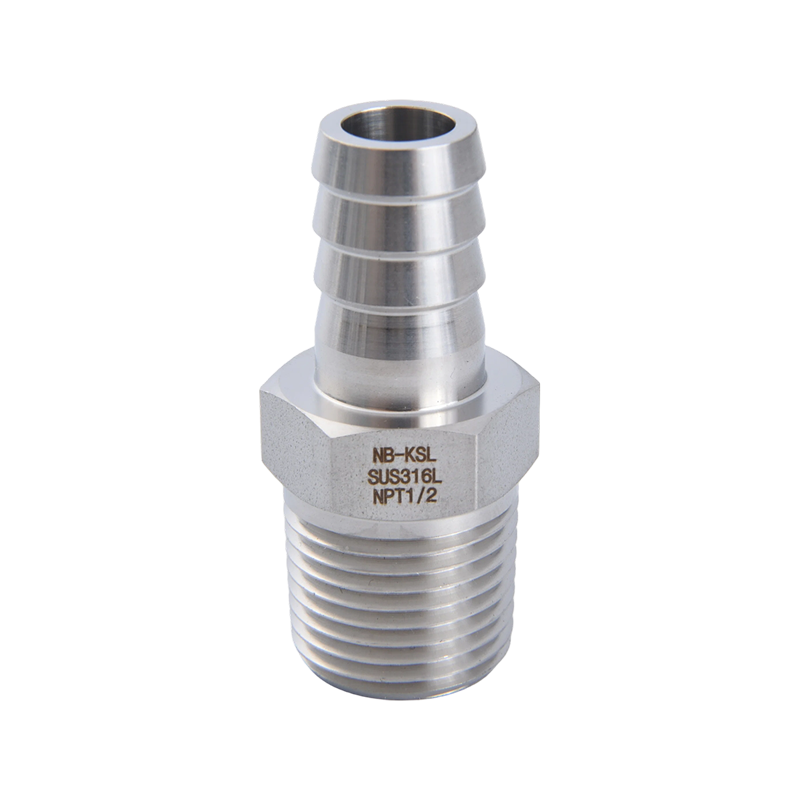

316L 스테인레스 스틸 외부 스레드 파고다 커넥터는 유체 배관 시스템을 위한 견고한 커넥터입니다. 핵심 기능은 호스와 견고한 인터페이스(예: 장비 포트, 밸브 및 강철 파이프의 내부 나사산) 간의 빠른 변환 및 밀봉 연결을 가능하게 하는 것입니다. 한쪽 끝에는 호스 연결을 위한 가시 돌출부가 있는 탑 모양의 머리가 있습니다. 다른 쪽 끝은 내부 스레드 구멍에 나사로 고정하거나 너트로 고정하기 위한 외부 스레드가 있는 금속 인터페이스입니다. 이 소재는 ASTM A276 또는 EN 10088 표준을 준수하며 핵심 구성 요소는 철, 크롬, 니켈 및 2%-3% 몰리브덴입니다. 기존 304 스테인레스 스틸과 비교하여 몰리브덴을 첨가하면 제품의 염화물 이온 부식에 대한 저항성이 크게 향상됩니다.

  • 설명
  • 문의하기

호스 커넥터

미터법 튜브를 파이프에 연결합니다.

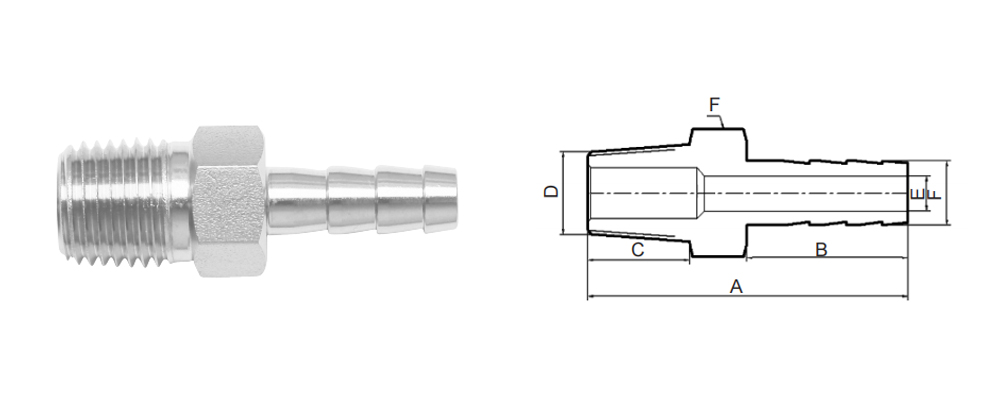

카탈로그 번호

A

B

C

D

E

D

F

1/4NPT-6mm

PJM-6-02-N

41.9

20.1

14

1/4NPT

4.8

7.27

14

1/4NPT-8mm

PJM-8-02-N

43.9

22.1

14

1/4NPT

5

9

14

1/4NPT-10mm

PJM-10-02-N

43.9

22.1

14

1/4NPT

7.1

11.9

14

1/2NPT-1/2

PJM-04-04-N

51.6

23.8

19

1/2NPT

9.7

15.12

22

별도로 지정하지 않는 한 모든 치수는 밀리미터 단위이며 변경될 수 있는 참조용입니다.
