316L 스테인레스 스틸 BV 직각 밸브

/ 제품 / 스테인레스 스틸 볼 밸브 / 316L 스테인레스 스틸 BV 직각 밸브

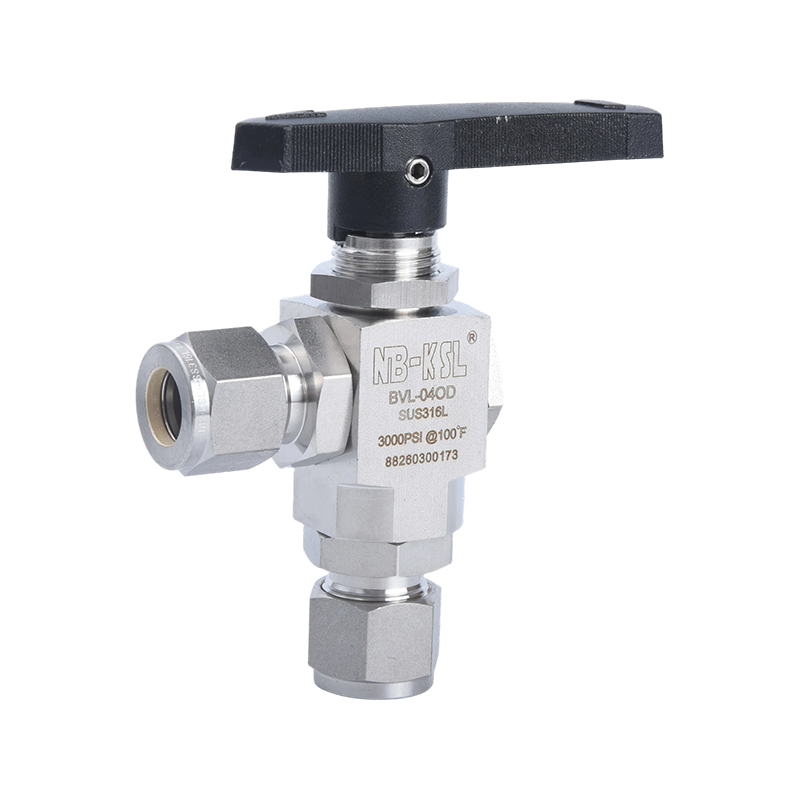

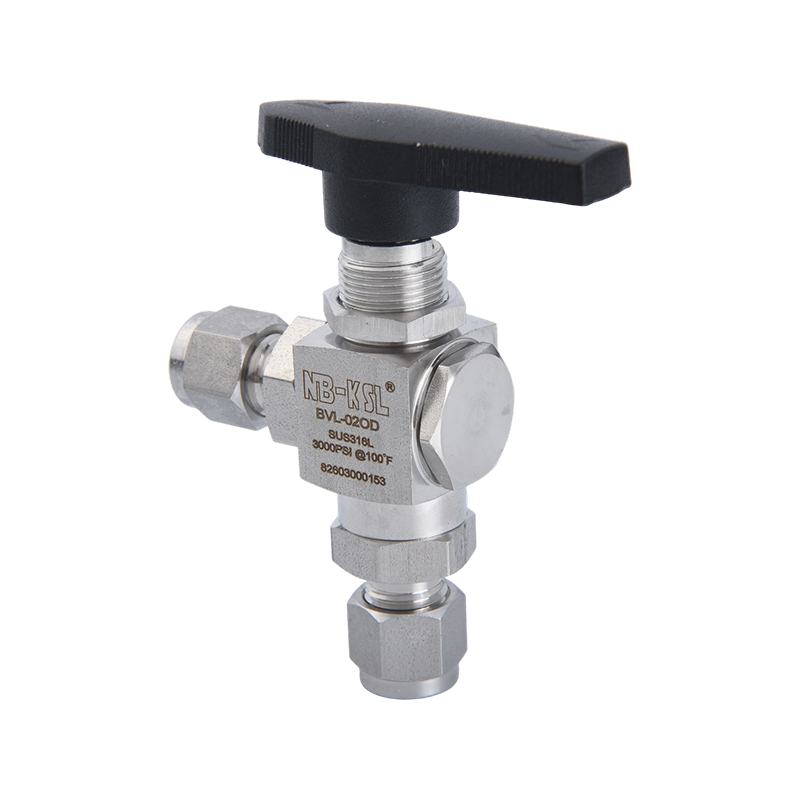

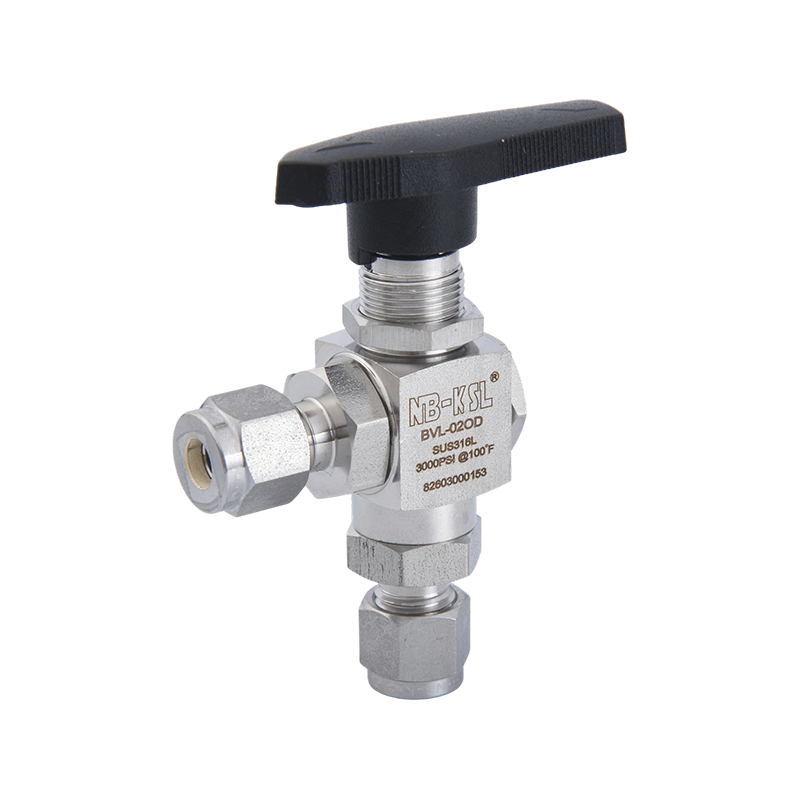

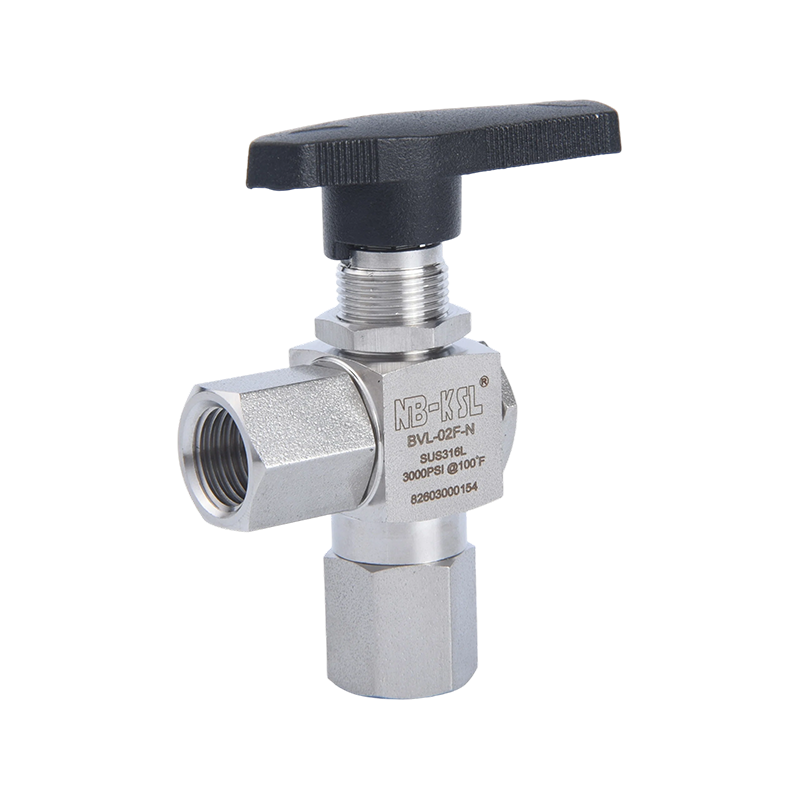

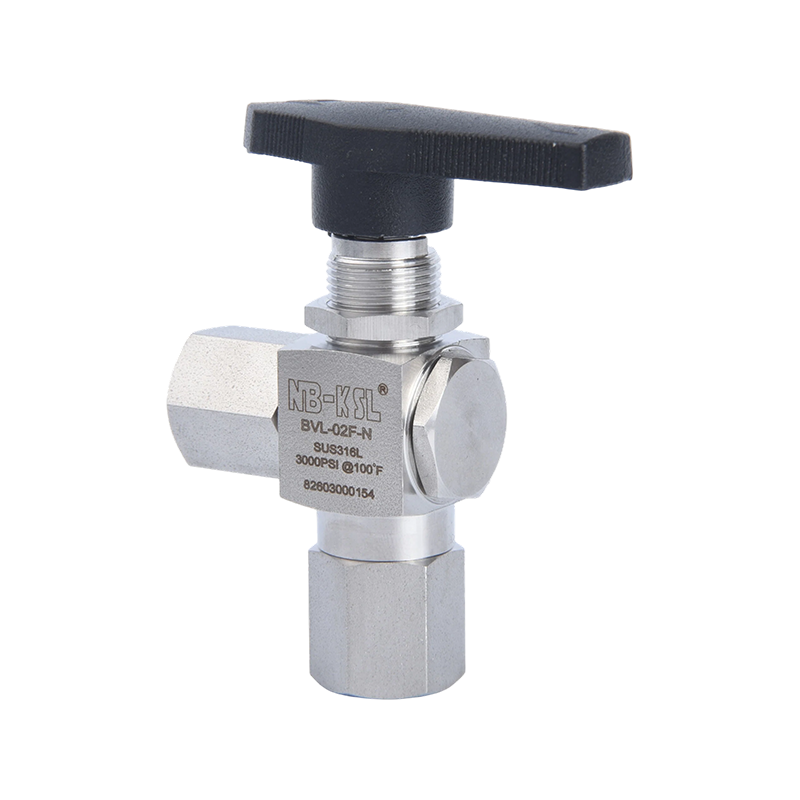

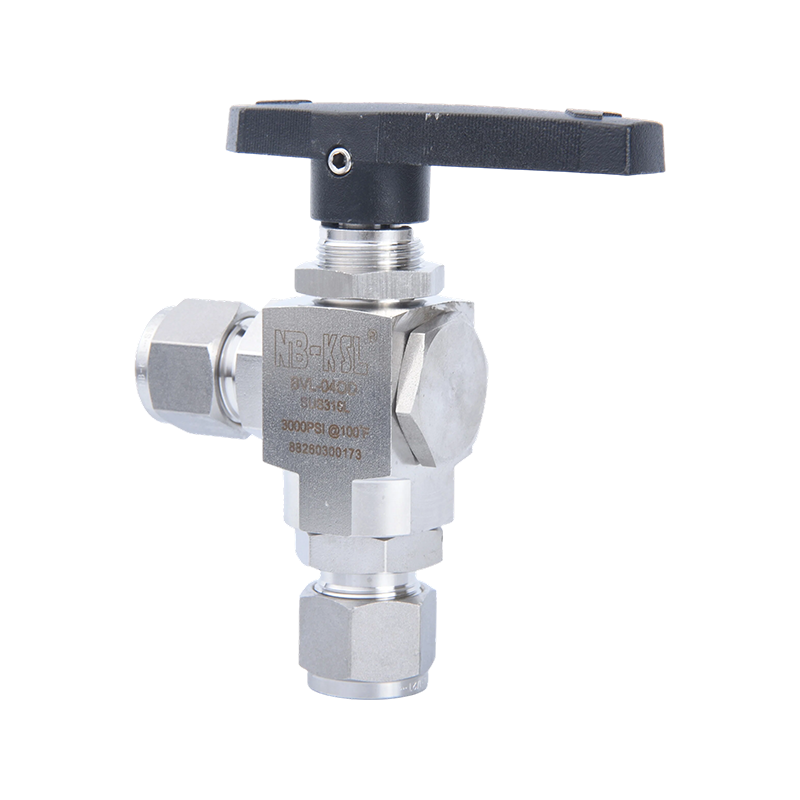

316L 스테인레스 스틸 BV 직각 밸브

이 밸브는 주로 액체 및 기체 매체의 흐름을 조절, 분배 또는 차단하는 데 사용됩니다. 독특한 유체 경로 설계를 갖춘 BV형 직각 밸브와 3방향 밸브는 보다 유연한 파이프라인 시스템 레이아웃, 보다 컴팩트한 설치 공간, 간단하고 편리한 작동을 가능하게 합니다. 밸브 본체는 유체 흐름 중 압력 손실을 최소화하기 위해 내부적으로 정밀 가공되었습니다. BV형 직각 밸브는 유체 통로가 90° 구부러져 있습니다. 이 컴팩트한 디자인은 제한된 공간이나 복잡한 파이프라인 레이아웃이 있는 환경에서 탁월한 설치 유연성을 제공하여 설치 공간을 효과적으로 절약하고 파이프라인 응력을 줄입니다. 두 가지 유형의 밸브 모두 유선형 내부 구조 설계를 채택하고 밸브 시트와 밸브 코어가 꼭 맞아 유체 흐름 중 압력 손실을 최소화합니다. 이는 또한 유체역학적 성능을 최적화하고 데드존과 액체 축적을 줄이며 효율적이고 안정적인 흐름 제어를 보장합니다.

  • 설명
  • 문의하기

다이렉트 볼 밸브

사양

A

B

D1 내부 구멍 관통 구멍

C

D

E

F

BV-01OD

1/8LOK

63

31

2.4

50

47

5

14

BV-02OD

1/4LOK

66.4

31

5

50

47

5

14

BV-03OD

3월 8일

70.5

31

5

50

47

5

14

BV-04OD

1/2LOK

86

40

10

84

62

5

19

BV-06OD 소형 바디

3/4LOK

91

46.4

10

84

62

5

19

BV-08OD

1"LOK

115.5

61.5

14

81

81

6

27

BV-3OD

3mmLOK

63

31

2.4

50

47

5

14

BV-4OD

4mmLOK

63

31

3

50

47

5

14

BV-6OD

6mmLOK

66.4

31

5

50

47

5

14

BV-8OD

8mmLOK

68.4

31

5

50

47

5

14

BV-10OD

10mmLOK

70.5

31

5

50

47

5

14

BV-12OD

12mmLOK

86

40

10

84

62

5

19

BV-14OD

14mmLOK

85

40

10

84

62

5

19

BV-16OD

16mmLOK

85

40

10

84

62

5

19

BV-18OD

18mmLOK

91

46.4

10

84

62

5

19

BV-20OD

20mmLOK

106.8

61.5

14

81

81

6

27

BV-22OD

22mmLOK

106.8

61.5

14

81

81

6

27

BV-25OD

25mmLOK

115.5

61.5

14

81

81

6

27

다이렉트 볼 밸브

NPT/PT

A

B

D1 내부 구멍 관통 구멍

C

D

E

F

BV-01F

1/8

46

/

5

50

47

5

14

BV-02F

1/4

54

/

5

50

47

5

14

BV-03F

3/8

64

1

10

84

62

5

19

BV-04F

1/2

66

1

10

84

62

5

19

BV-06F

3/4

87

1

14

81

81

6

27

BV-08F

1"

109.5

1

14

81

81

6

27
