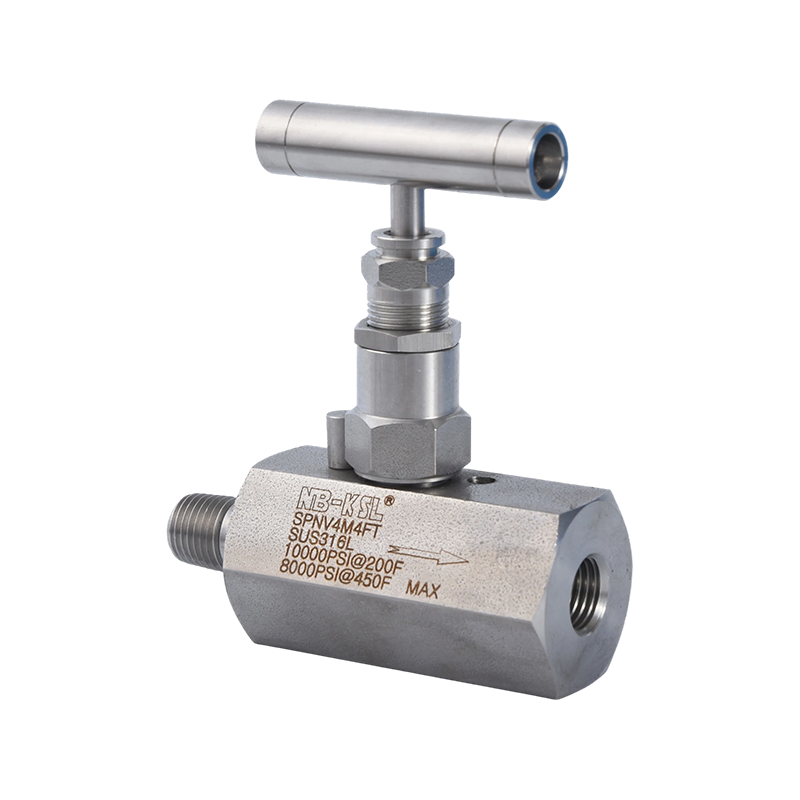

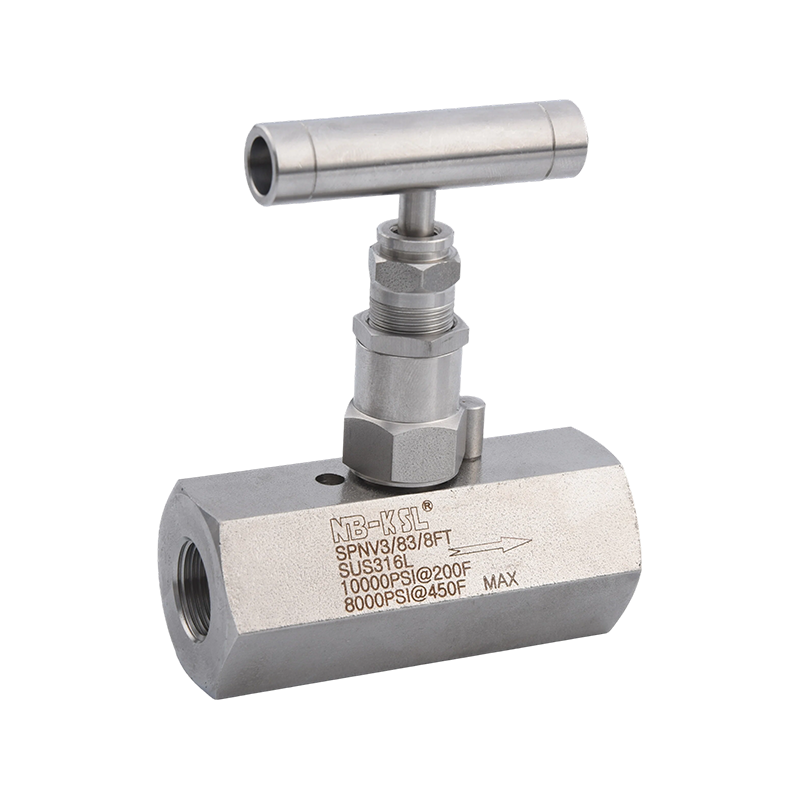

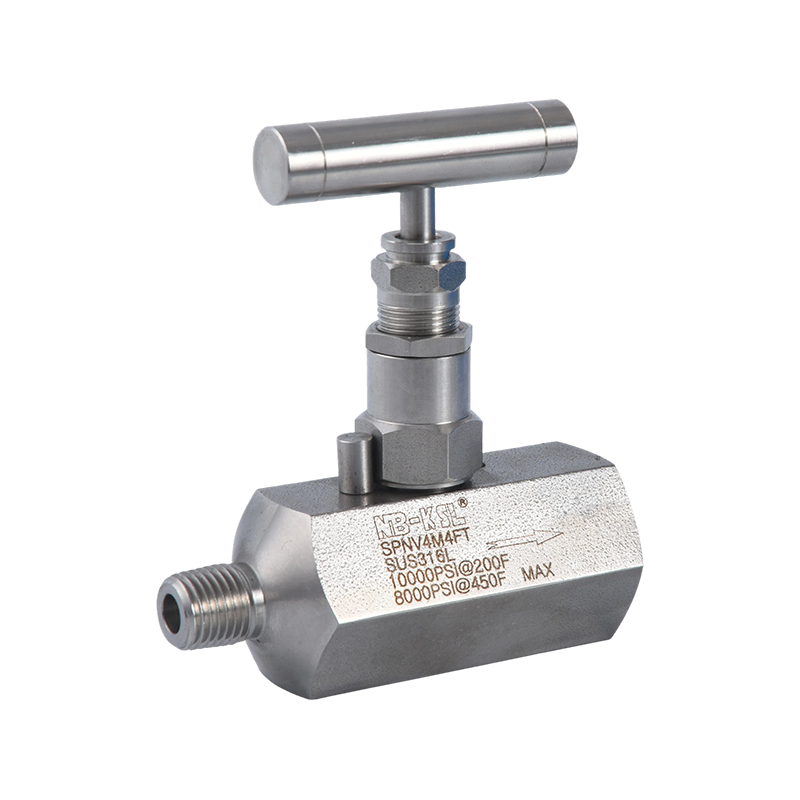

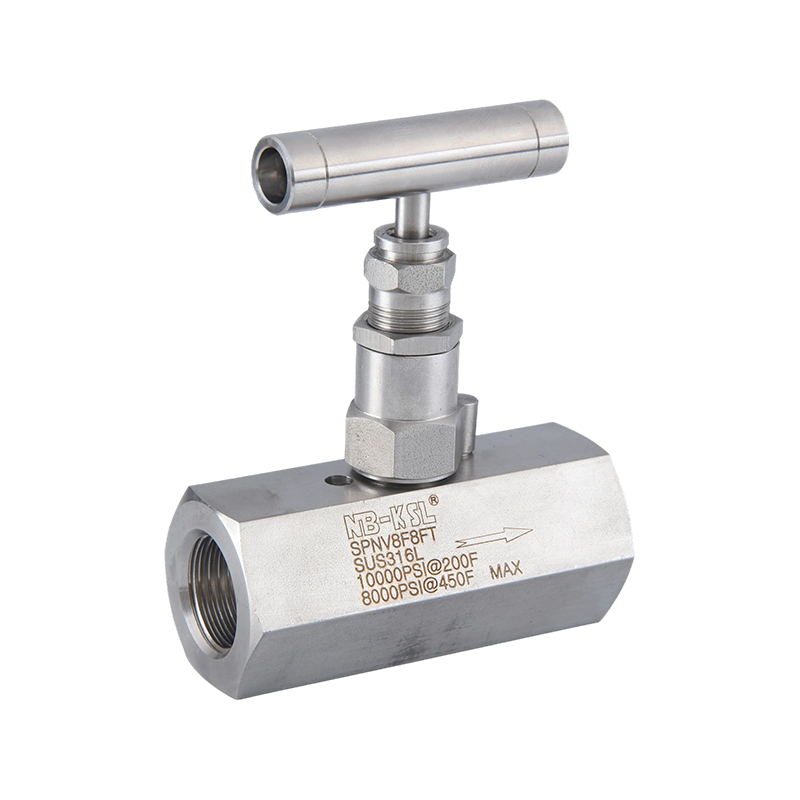

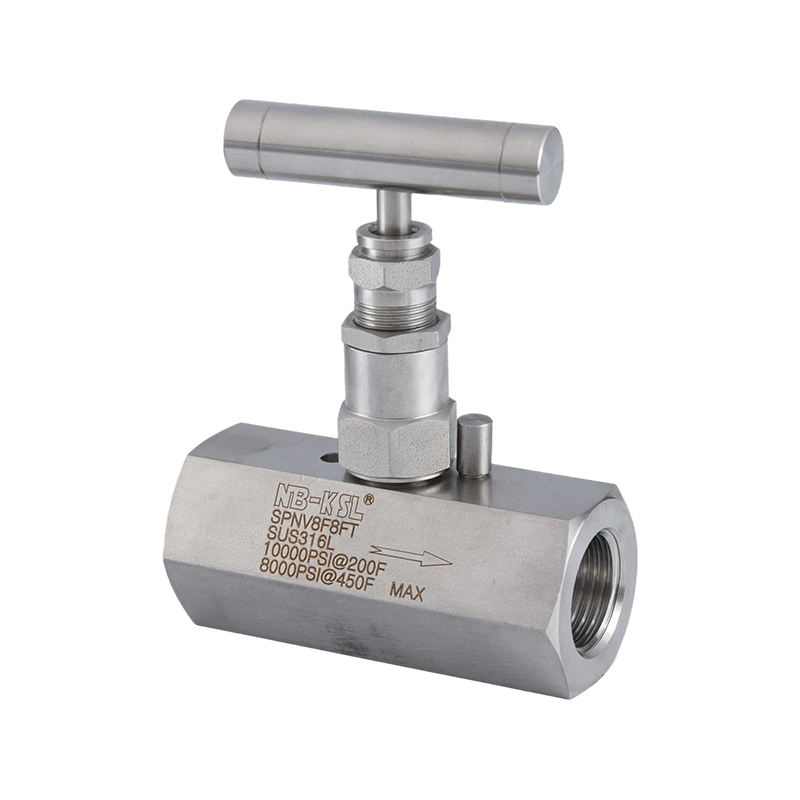

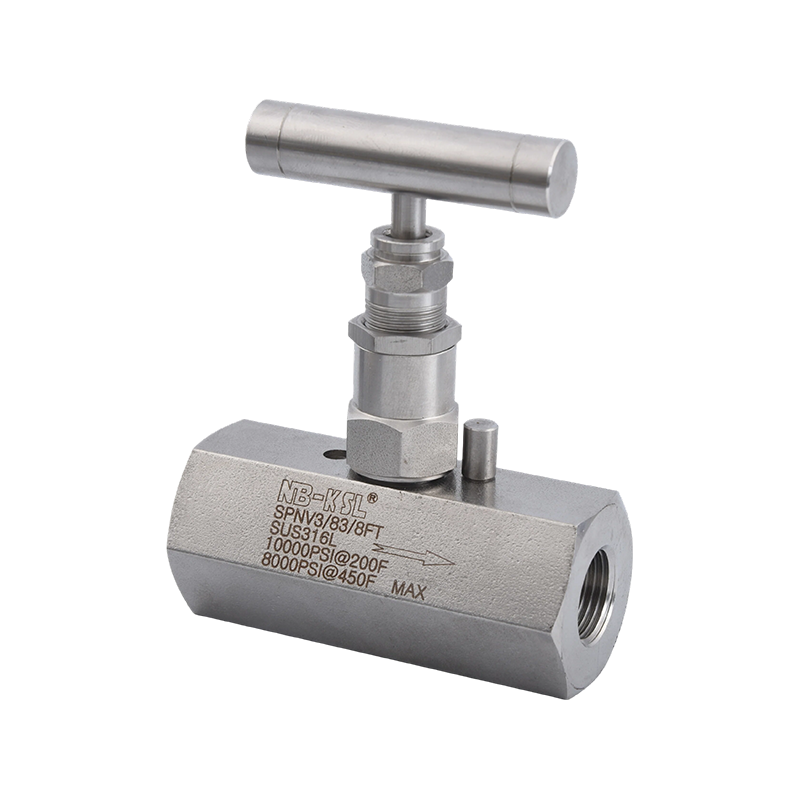

316L 스테인레스 스틸 PNV 형 고압 니들 밸브

이 밸브는 정확하고 제어 가능한 유량 조절을 보장하기 위해 정밀 CNC 가공 및 광택 처리된 본체, 코어 및 니들 로드를 갖추고 있습니다. 밸브 로드 표면도 질화 처리하여 강도를 높였습니다. 밸브 씰은 PTFE, PCTFE 또는 금속 씰링 링을 사용합니다. 밸브 본체 캐비티는 고정밀 연마를 거쳐 원활한 흐름 경로를 제공하여 매체 흐름 저항과 침전 위험을 줄입니다. 외부 표면도 정밀하게 연마되었습니다. PNV 니들 밸브는 일반적으로 400~600bar를 견디는 고압 시스템에서 탁월한 내압성을 나타냅니다. 더 높은 압력 사양은 특정 고객 요구 사항을 충족하도록 맞춤화할 수 있으므로 극한 조건에서도 안전하고 안정적인 작동을 보장합니다. 바늘 모양의 코어 설계로 미세 조정 및 정밀한 흐름 제어가 가능합니다.

  • 설명
  • 문의하기

설명

등급/ASTM 사양

본체 재질

SS316

1

손잡이

SS304

2

고정나사

SS304

3

잠금너트

SS304

4

패킹 볼트

SS316

5

패킹 글랜드

SS316

6

패킹워셔

SS316

7

포장

PTFE

8

보닛

SS316

9

줄기

SS316

10

비 팁

SS316 SS630/A564

볼 팁

11

정지 핀

SS304

12

본체

SS316

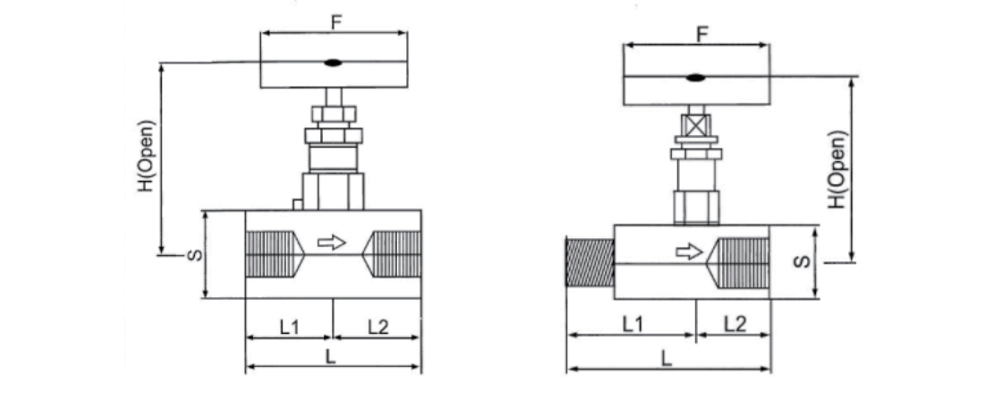

위 치수는 참고용입니다. 변경사항이 있을 경우 추가 공지는 제공되지 않습니다. 표시가 없는 사양은 공장에 문의하여 맞춤 제작하시기 바랍니다.
