316L 스테인레스 스틸 나사식 보닛 니들 밸브

특징
최대 작동 압력은 10.000psig(689bar)입니다.
표준 PTFE 패킹 사용 시 -65F ~ 450°F(-54℃ ~ 232°C)의 온도 범위, 옵션 Grafoil 패킹 사용 시 최대 1200F(648°C).
본체 재질은 316SS, 탄소강 및 합금 400(모넬)으로 제공됩니다.
최대 작동 압력은 10.000psig(689bar)입니다.
100% 공장 테슬레드.

  • 설명
  • 문의하기

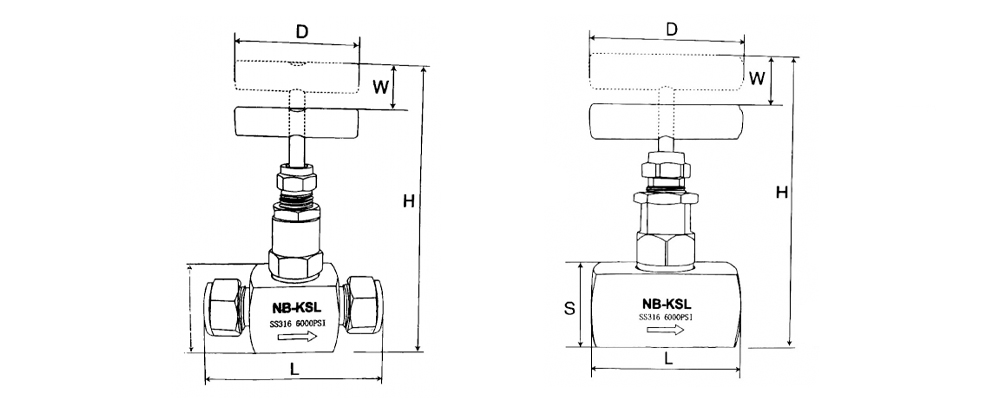

NVF 하우징 커넥터 핀 밸브 치수표

주문모델

크기

D

D1

L

H

S

W

NVF-02OD

1/4LOK

55

3

65

74

22

4

NVF-03OD

3월 8일

55

5

65

74

22

4

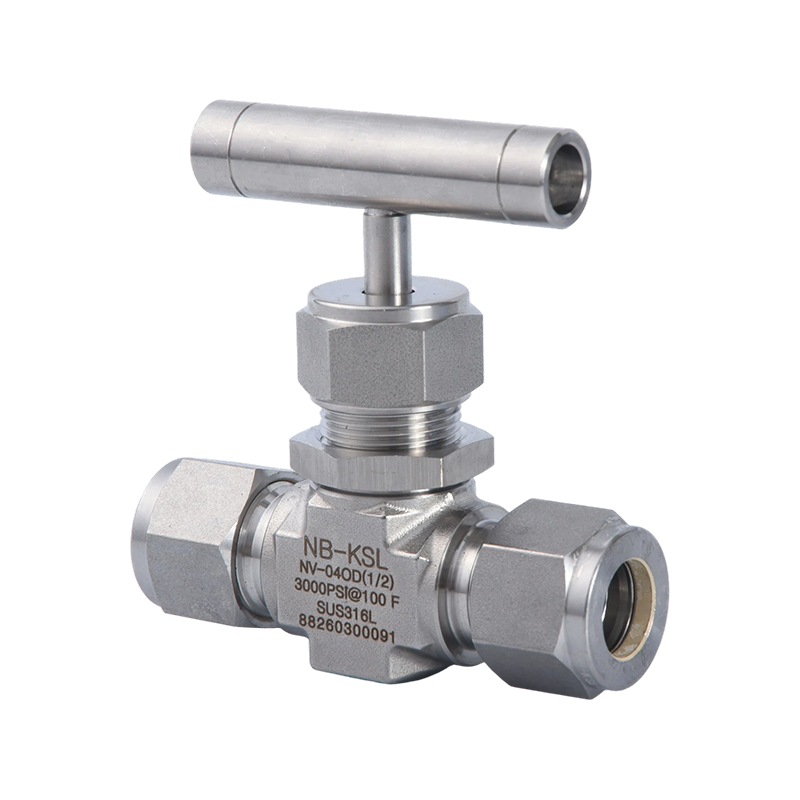

NVF-04OD

1/2LOK

55

6

77

96

28

5

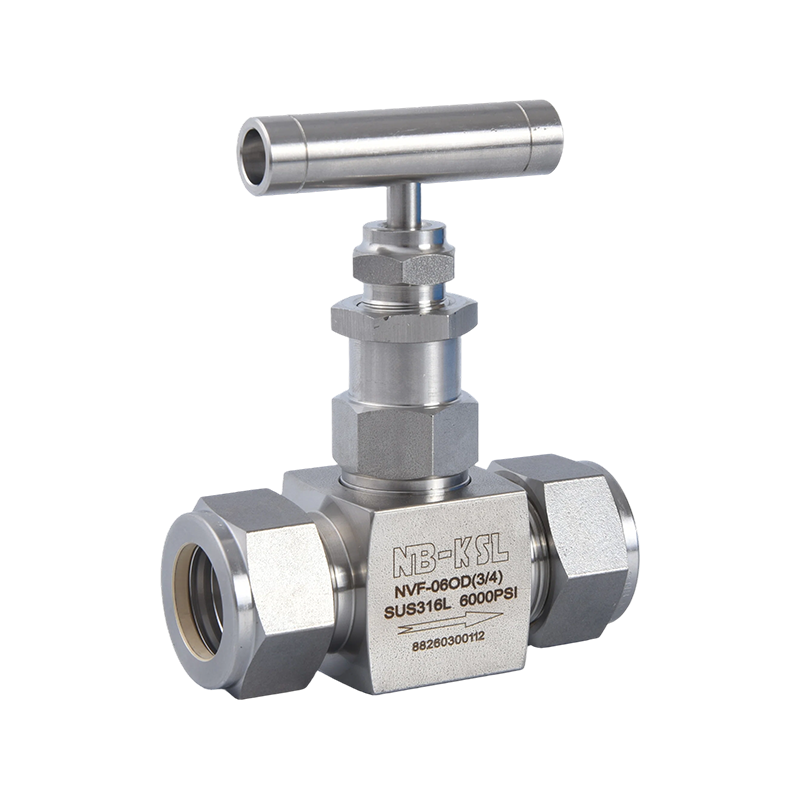

NVF-06OD

3/4LOK

55

7

77

96

28

5

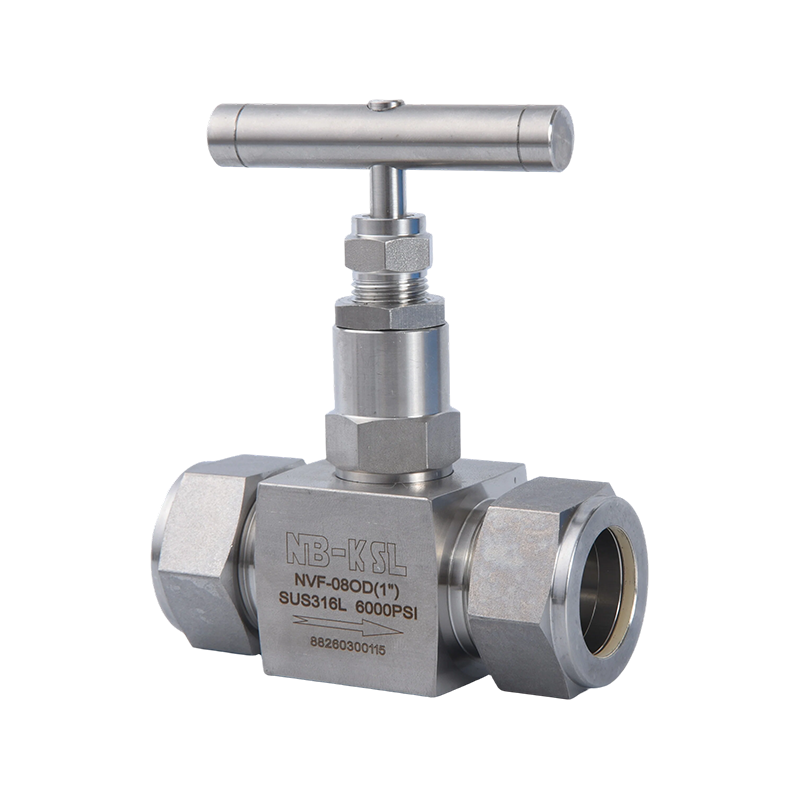

NVF-08OD

1"LOK

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10mmLOK

55

5

65

74

22

4

NVF-12OD

12mmLOK

55

6

77

96

28

5

NVF-14OD

14mmLOK

55

7

77

96

28

5

NVF-16OD

16mmLOK

55

7

77

96

28

5

NVF-18OD

18mmLOK

55

7

77

96

28

5

NVF-20OD

20mmLOK

75

10

92

117

38

7

NVF-22OD

22mmLOK

75

10

92

117

38

7

NVF-25OD

25mmLOK

75

10

96

119

40

7

NVF 나사 연결 니들 밸브 치수표

주문모델

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


NVF 나사형 니들 밸브 외부 치수표

주문모델

P

D

D1

L

H

S

W

NVF-10W

10mm

55

5

108

74

22

4

NVF-12W

12mm

55

6

122

96

28

5

NVF-14W

14mm

55

6

122

96

28

5

위의 크기 데이터는 참고용입니다. 변경사항은 별도로 공지되지 않습니다. 사양이 기재되어 있지 않은 경우에는 공장에 문의하여 주문해 주십시오.
