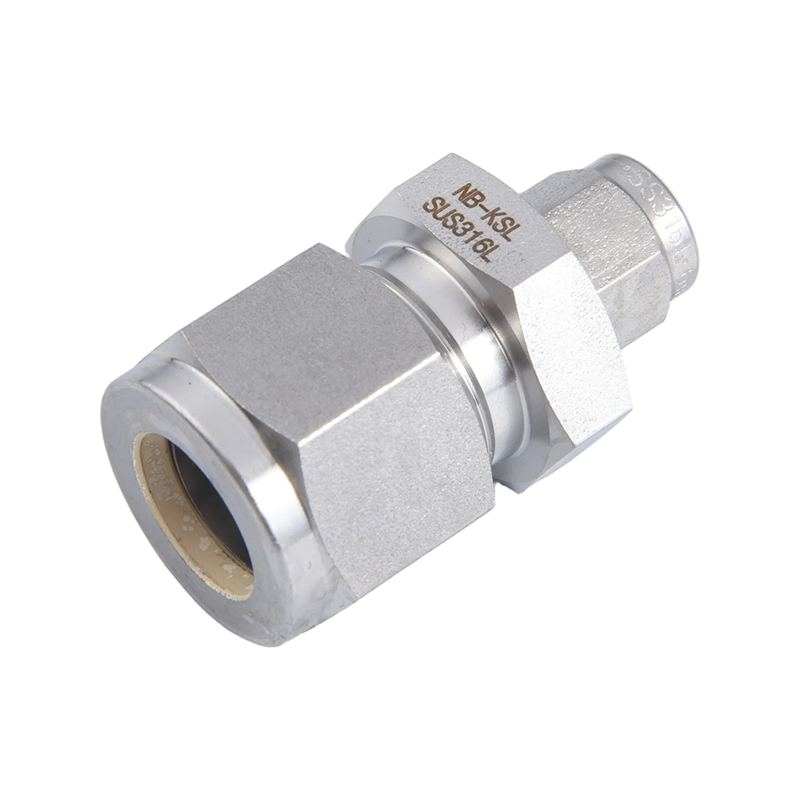

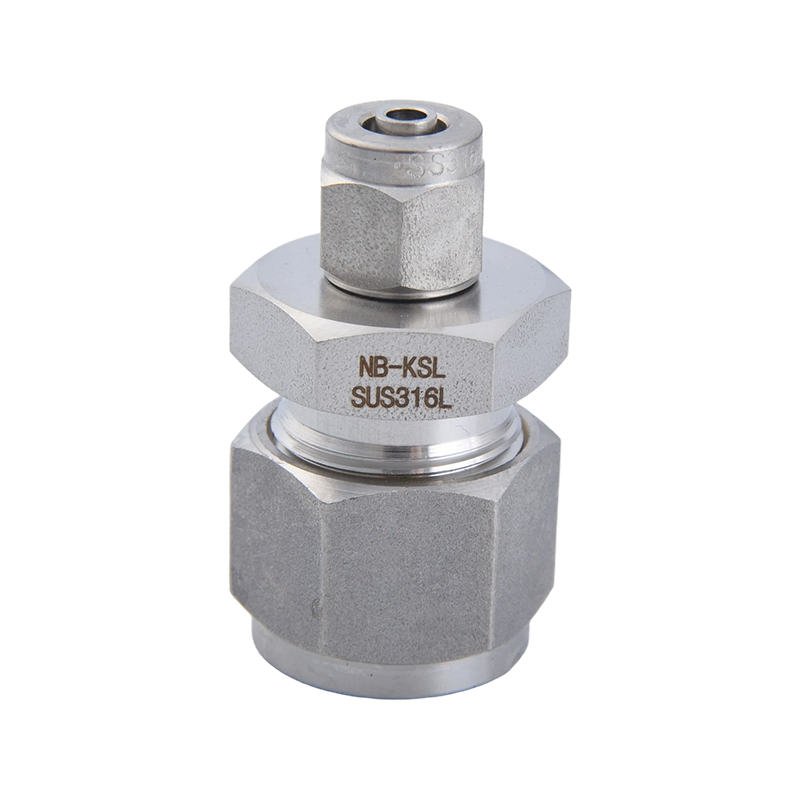

316L 스테인레스 스틸 압축 피팅 감속기 직선 커넥터

이 고성능 테이퍼형 직선 커넥터는 고압, 고순도 및 부식성이 매우 높은 환경을 위해 설계되었습니다. 고품질 316L 저탄소 스테인리스강으로 제조된 이 제품은 다양한 파이프 직경(미터법 또는 분수형) 간에 안정적인 유체 시스템 연결을 제공하여 극한의 작동 조건에서도 누출이 전혀 발생하지 않도록 보장합니다.

주요 제품 장점:
우수한 재료 성능: 316L 스테인리스강으로 제작되어 표준 304 또는 316에 비해 탄소 함량이 낮아 용접 중이나 고온 환경에서 입계 부식을 효과적으로 억제합니다. 내공식성이 뛰어나 해양, 화학, 반도체 산업에 이상적입니다.
이중 페룰 밀봉 기술:  전통적인 이중 페럴 디자인을 활용하여 후면 페럴은 강력한 지지력을 제공하고 전면 페럴은 완벽한 금속 간 밀봉을 형성합니다. 이 구조는 매우 높은 진동을 견딜 수 있으며 상당한 열 순환 중에 견고성을 유지할 수 있습니다.
정밀 테이퍼 연결: 서로 다른 직경의 두 파이프를 연결하도록 특별히 설계되었으며 유체 전환을 최적화하고 파이프 피팅 수를 줄여 시스템 라우팅을 단순화하고 압력 손실을 줄입니다.
쉽고 반복 가능한 설치: 용접, 나사산 가공 또는 플레어링 작업이 필요하지 않습니다. 렌치만으로 설치를 완료할 수 있으며 실링 표면을 손상시키지 않고 여러 번의 분해 및 재조립을 지원합니다.

일반적인 응용 분야:
석유 및 가스: 해양 플랫폼의 계기판 연결 및 부식성 환경.
반도체 제조: 초고순도 가스 공급 시스템(VHP).
실험실 및 분석 기기: 가스 크로마토그래프, 샘플링 시스템.
수소 에너지 산업: 고압 수소 파이프라인 연결.

  • 설명
  • 문의하기

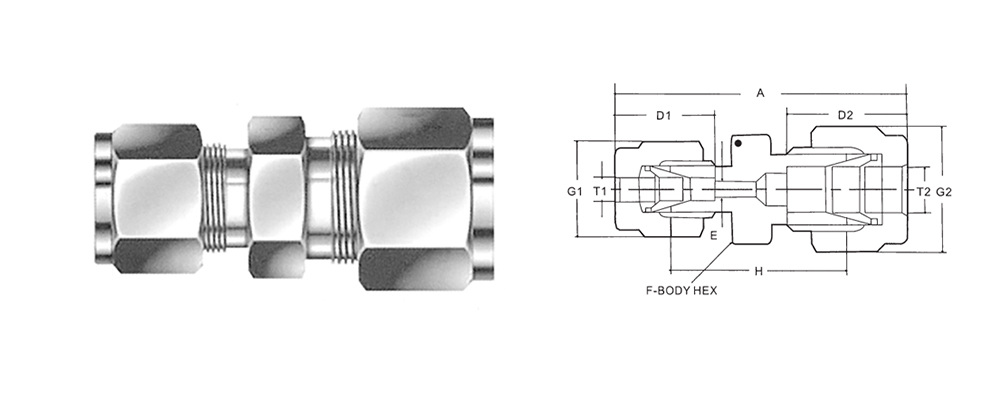

(미터법)

튜브 외경 카탈로그

T1

T2

번호

A

D1

D2

E

G1

G2

F

H

3

6

RU-3-6

40

13.5

15.8

2.4

12

14

14

25.2

4

6

RU4-6

40.2

13.7

15.8

3

12

14

14

25.4

6

8

RU-6-8

42.9

15.8

16.7

4.8

14

16

16

27.4

6

10

RU-6-10

44.9

15.8

19.6

4.8

14

19

17

29.5

6

12

RU-6-12

48.1

15.8

23.8

4.8

14

22

19

29.5

8

10

RU-8-10

45.3

16.7

19.6

6.4

16

19

17

30

8

12

RU-8-12

48.7

16.7

23.8

6.4

16

22

19

30.2

10

12

RU-10-12

49.4

19.6

23.8

7.9

19

22

19

31

12

16

RU-12-16

52.8

23.8

24.3

9.5

22

27

24

31.8

12

18

RU-12-18

54.8

23.8

24.8

9.5

22

27

27

33.3

18

25

RU-18-25

60.6

22.8

24.8

15.1

30

38

35

38.1

20

25

RU-20-25

63.1

25.5

31.7

15.9

32

38

35

39.9


(소수)

튜브 O.D

T1

단위  mm

T2

카탈로그 번호

A

D1

D2

E

G1

G2

F

H

3

1/8

RU-3-01

36.9

13.5

14

2.4

12

12

12

22.4

4

1/8

RU-401

37.6

13.7

14

2.4

12

12

12

23.4

4

1/4

RU-402

39.9

13.7

15.8

3

12

14

14

25.4

6

1/8

RU-6-01

41

15.8

14

2.4

12

14

14

25.2

6

1/4

RU-6-02

41.8

15.8

15.8

4.8

14

14

14

26.2

8

1/4

RU-8-02

42.9

16.7

15.8

4.8

14

16

14

27.4

10

1/8

RU-10-01

44.1

19.6

14

2.4

12

19

17

28.5

10

1/4

RU-10-02

44.9

19.6

15.8

4.8

14

19

17

29.5

10

3/8

RU-10-03

46.2

19.6

19.6

7.1

17

19

17

31

12

3/8

RU-12-03

49.4

23.8

19.6

7.1

17

22

22

31

12

1/2

RU-12-04

52

23.8

23.4

9.5

22

22

22

31

18

3/4

RU-18-06

54.5

24.8

24.4

15.1

30

30

27

33.3

20

3/4

RU-20-06

55.7

25.5

24.4

15.7

32

30

30

34.8

20

1"

RU-20-08

63.1

25.5

31.7

15.9

32

38

35

39.9

22

1"

RU-22-08

63.1

25.5

31.7

18.3

32

38

35

39.9
