316L 스테인레스 스틸 이중 외부 스레드 커넥터

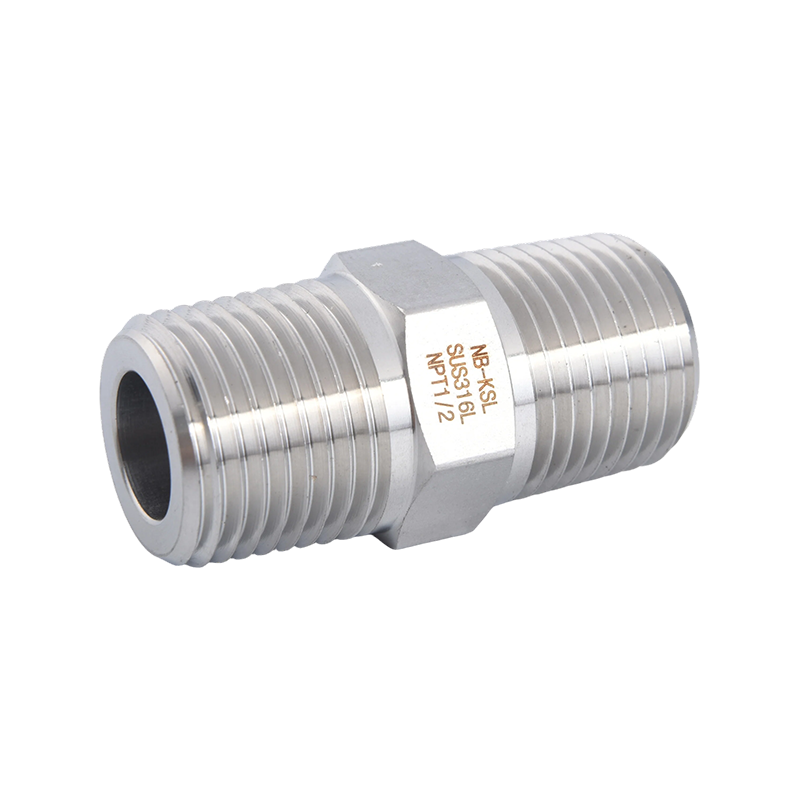

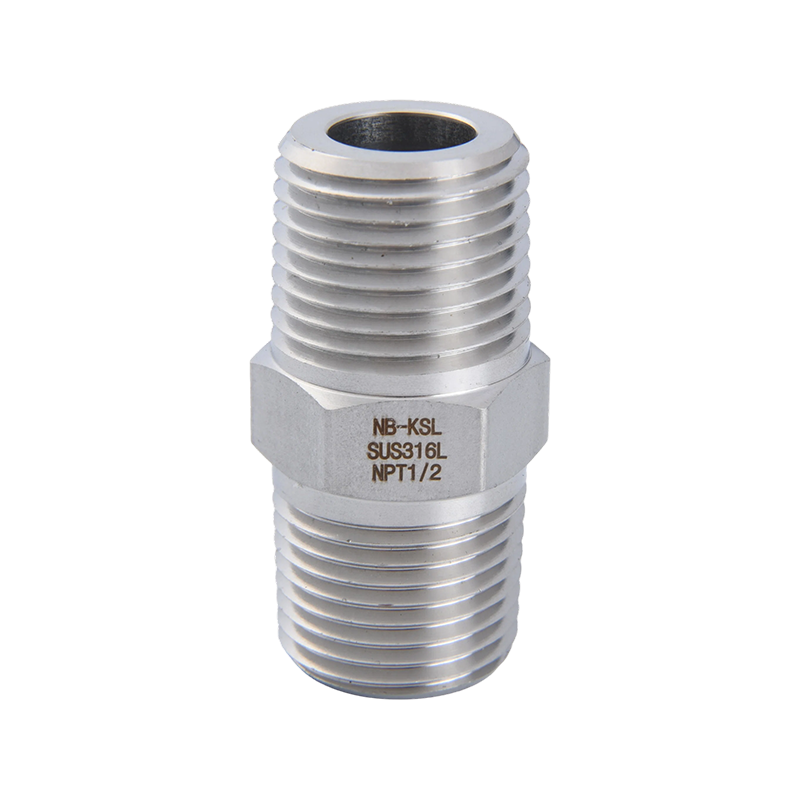

316L 스테인레스 스틸 이중 외부 스레드 커넥터는 배관 시스템의 견고한 연결에 사용되는 선형 기계 피팅입니다. 핵심 특징은 양쪽 끝에 외부 나사산이 있고 중앙에는 일반적으로 육각형 또는 원형의 힘을 지탱하는 구동 섹션이 있다는 것입니다. 이 제품은 두 개의 파이프, 밸브 또는 내부 나사산이 있는 장비 포트 사이에 직선 연결과 긴밀한 밀봉을 달성하도록 설계되었습니다. 본체 양쪽 끝의 나사 부분은 연결 기능을 구현하는 핵심 영역입니다. 중간 힘을 받는 부분은 표준 육각 머리 구조로 설계되었으며, 그 면 폭은 표준 렌치 개방 사양을 따릅니다. 이 부품은 설치 중에 토크를 가할 뿐만 아니라 구조적 보강 역할도 하여 커넥터의 전체 인장 강도를 증가시킵니다. 전환 숄더는 나사산 섹션과 육각형 헤드를 연결하며 응력 집중 지점을 제거하기 위해 릴리프 홈 또는 모따기로 설계되었습니다.

  • 설명
  • 문의하기

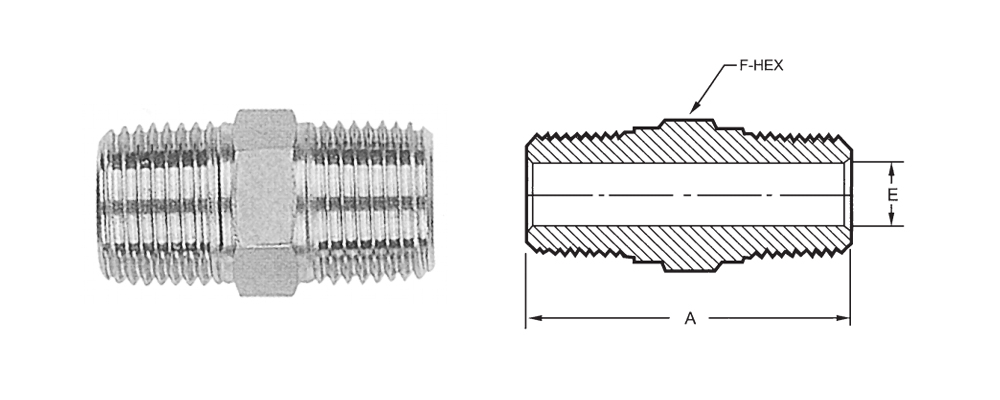

육각 니플

(미터법)

P 남성 PT/NPT 크기

카탈로그 번호

A

E분 오프닝

F 헥스 플랫

1/8

HN-01

25.6

4.8

12

1/4

HN-0 2

36

7.1

14

3/8

HN-03

36.3

9.6

17

1/2

HN-04

46.7

11.9

22

3/4

HN-06

46.7

15.7

27

1"

HN-08

58.9

21.5

35
