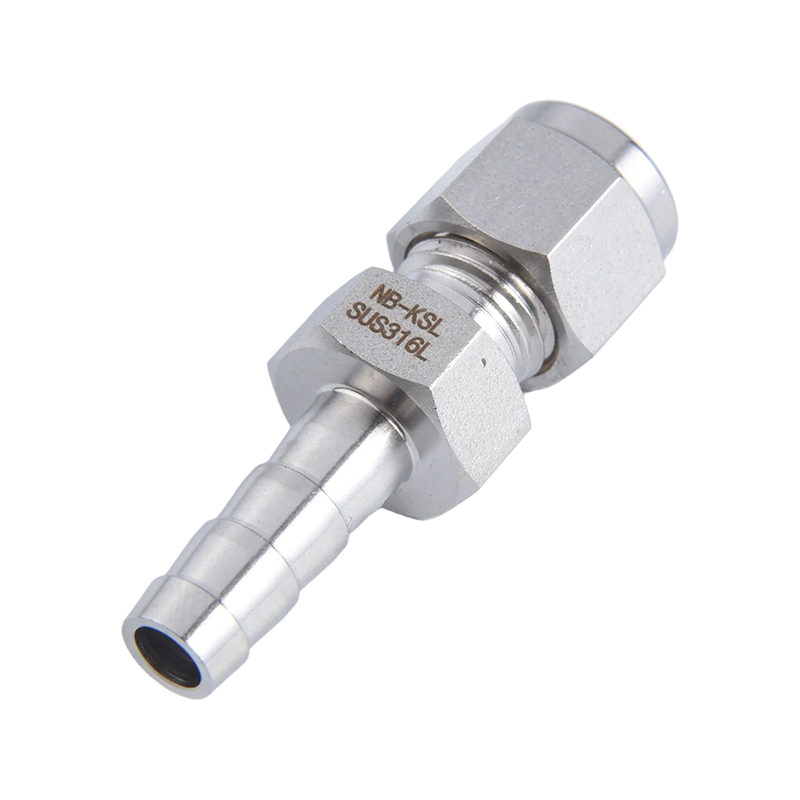

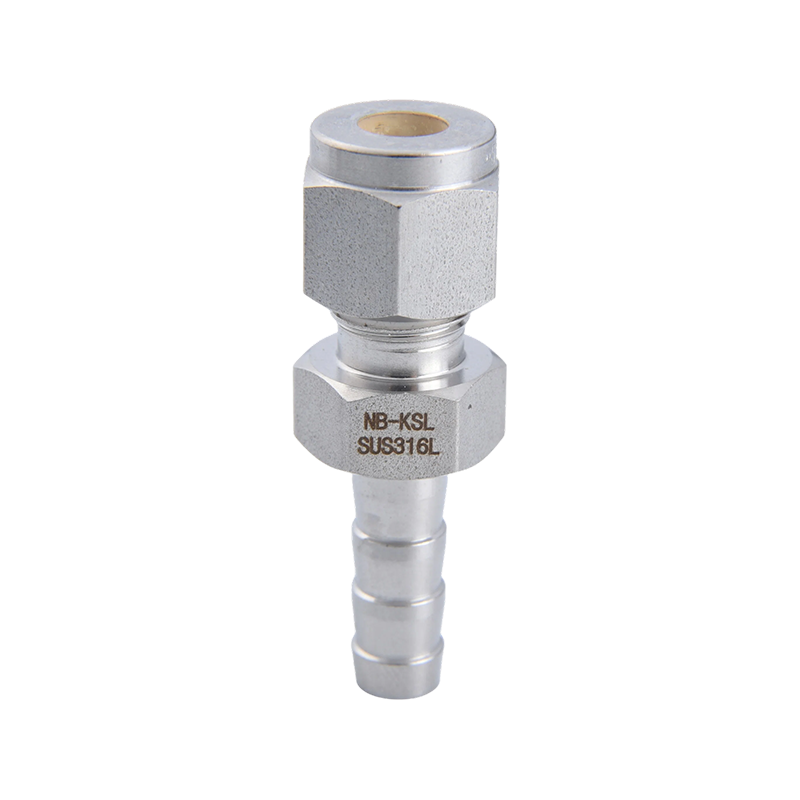

316L 스테인레스 스틸 카드 슬리브 파고다 커넥터

316L 스테인레스 스틸 카드 슬리브 파고다 커넥터는 유체 배관 시스템용 특수 어댑터입니다. 핵심 기능은 견고한 파이프(예: 금속 파이프)와 유연한 파이프(예: 고무 또는 플라스틱 호스) 사이를 효율적이고 밀봉된 연결을 달성하는 것입니다. 제품 본체는 316L 오스테나이트 스테인리스강으로 만들어졌으며, 압축 피팅 하드 씰 기술과 파고다 스타일의 기계식 클램핑 구조를 결합했습니다. 용접이나 플레어링이 필요하지 않습니다. 금속 파이프의 영구 밀봉은 간단히 기계적 조임으로 달성됩니다. 동시에 바브 구조를 통해 유연한 호스를 신속하게 조립 및 분해할 수 있어 고정밀, 고부식, 고청정 배관 시스템의 핵심 구성 요소입니다. 이 끝은 다양한 재질의 호스를 연결하도록 설계되었으며 커넥터 끝 부분에는 탑과 유사한 계단 모양의 환형 돌출부가 있습니다. 이 미늘은 단순한 링이 아니라 특정 입구 및 출구 각도로 설계되었습니다. 바브 팁은 경화되거나 316L의 고유 경도에 의존하여 유연한 호스의 내부 표면을 약간 관통합니다.

  • 설명
  • 문의하기

호스 커넥터

미터법 튜브를 파이프에 연결합니다.

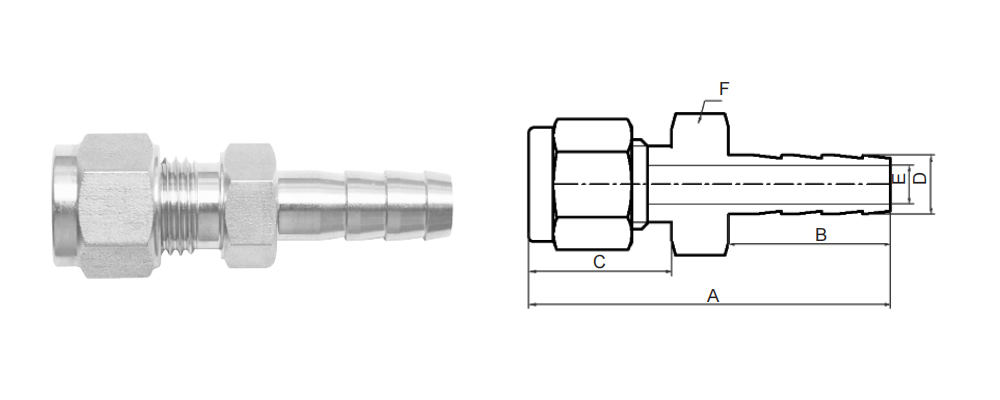

카탈로그
번호

T

A

B

C

E

D

F

1/4-6mm

PJOD-02-6

1/4

44.9

20.1

17.8

4.8

7.27

12

1/4-8mm

PJOD-02-8

1/4

46.8

22.1

17.8

6

9

12

3/8-6mm

PJOD-03-6

3/8

46.2

20.1

19.6

4.8

7.27

16

3/8-8mm

PJOD-03-8

3/8

48.2

22.1

19.6

6

9

16

6mm-6mm

PJOD-6-6

6

44.9

20.1

17.8

4.8

7.27

12

8mm-8mm

PJOD-8-8

8

47.8

22.1

18.7

6

9

14

8mm-1/2

PJOD-8-04

8

49.5

23.8

18.7

6.4

15.12

17

12mm-1/2

PJOD-12-04

12

55.1

23.8

22.8

9.7

15.12

22
