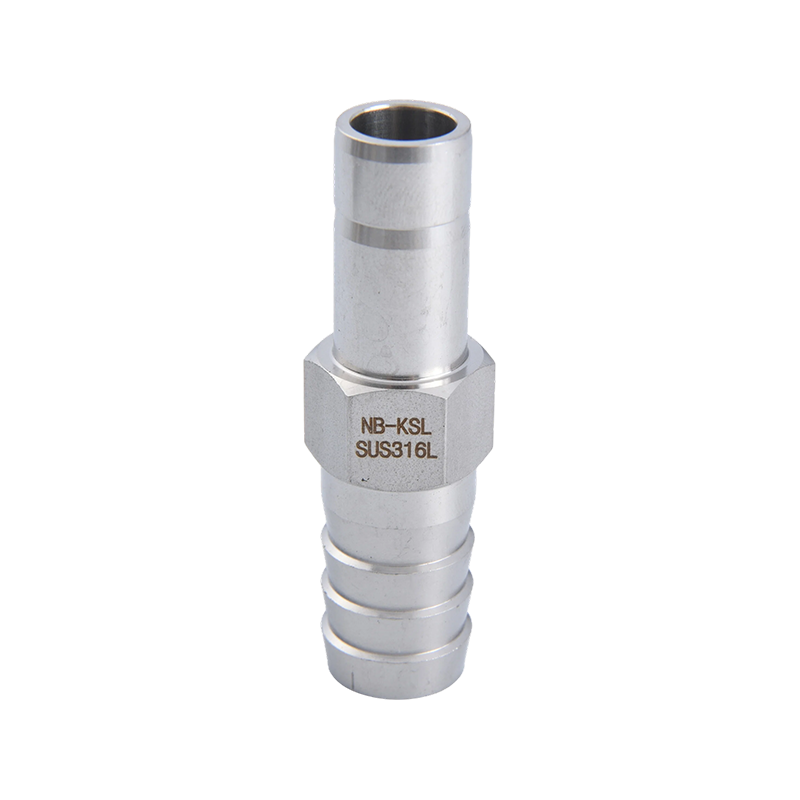

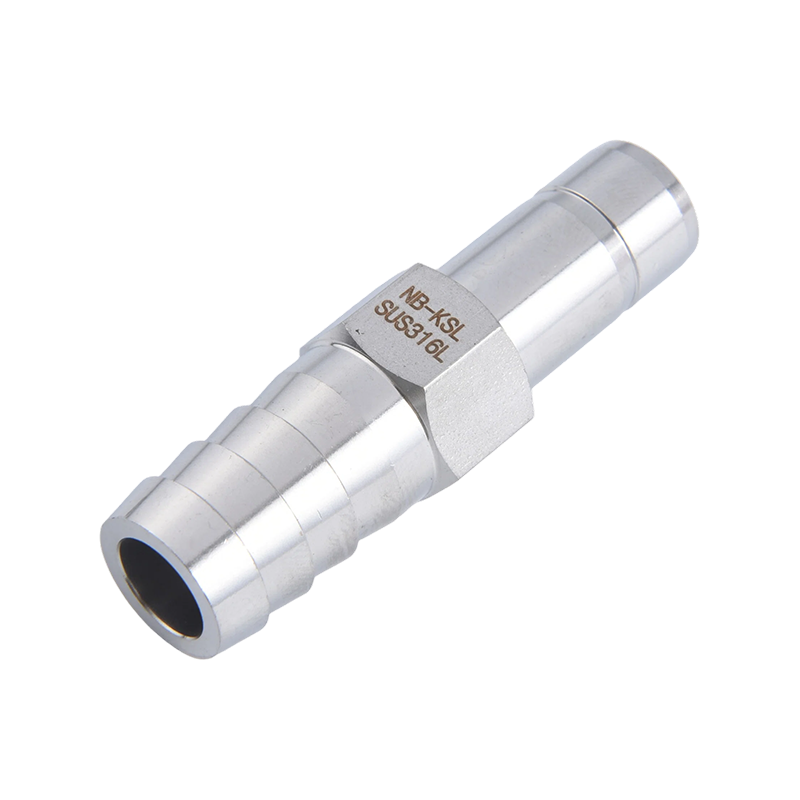

316L 스테인레스 스틸 직선 파이프 파고다 커넥터

이 커넥터는 주로 직선 파이프 시스템에서 두 파이프 섹션 사이의 연결 구성 요소로 사용되므로 신속한 설치, 분해 및 유지 관리가 가능합니다. 탑 모양의 계단형 디자인이 특징인 독특한 구조로 압력, 진동, 온도 변화에도 응력 분포가 균일해 배관 누출 및 마모 위험이 줄어듭니다. 탑 모양의 구조는 이 커넥터의 핵심 디자인 컨셉입니다. 다층 보스 디자인은 커넥터와 파이프 사이의 접촉 면적을 늘려 기계적 안정성을 향상시킵니다. 계단식 구조는 내부 압력과 진동력을 고르게 분산시켜 피로 파괴 위험을 줄입니다. 탑형 디자인으로 다점 밀봉 접촉이 용이해 전체적인 밀봉 성능이 향상됩니다.

  • 설명
  • 문의하기

호스 커넥터

분수 튜브를 파이프에 연결합니다.

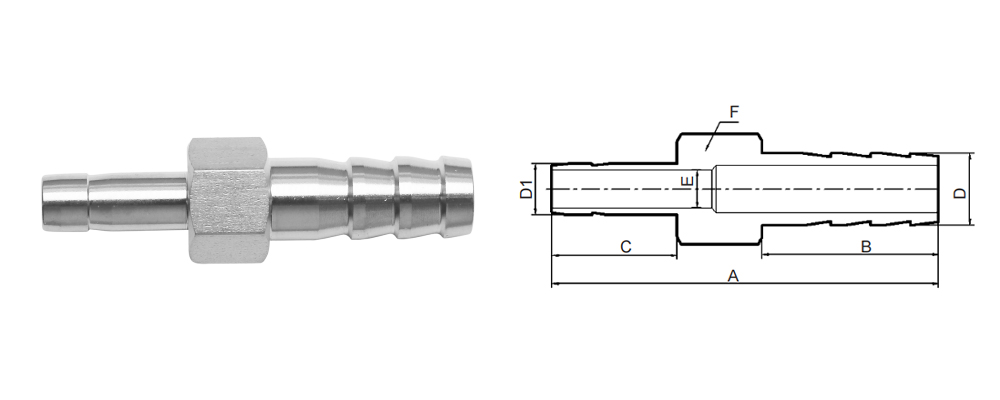

카탈로그

번호

A

B

C

E

D

D1

F

1/4-4mm

PJT-02-4

41.4

15

15.7

2.5

4.80

6.35

12

1/4-6mm

PJT-02-6

46.5

20.1

15.7

4.8

7.27

6.35

12

1/4-8mm

PJT-02-8

46.5

22.1

15.7

4.8

9

6.35

12

1/4-10mm

PJT-02-10

50.3

22.1

15.7

4.8

11.9

6.35

14

3/8-8mm

PJT-03-8

49.3

22.1

17.6

6

9

9.52

12

3/8-10mm

PJT-03-10

50.3

22.1

17.6

6

11.9

9.52

14

3/8-12mm

PJT-03-12

52.1

23.8

17.6

7.1

14.5

9.52

16

1/2-8mm

PJT-04-8

55.9

22.1

23.2

6

9

12.7

14

1/2-10mm

PJT-04-10

55.9

22.1

23.2

8

11.9

12.70

14

1/2-12mm

PJT-04-12

57.7

23.8

23.2

9.5

14.5

12.7

16

6mm-6mm

PJT-6-6

46.5

20.1

15.7

4.8

7.27

6

12

8mm-8mm

PJT-8-8

46.5

22.1

16.5

6

9

8

12

3/8~3/8

PJT-03-03

50.3

22.1

17.6

7.1

11.43

9.52

14

1/2-1/2

PJT-04-04

57.7

23.8

23.2

9.5

15.12

12.7

16

3/4-3/4

PJT-06-06

62

26.7

24.6

15

22.72

19.05

27
