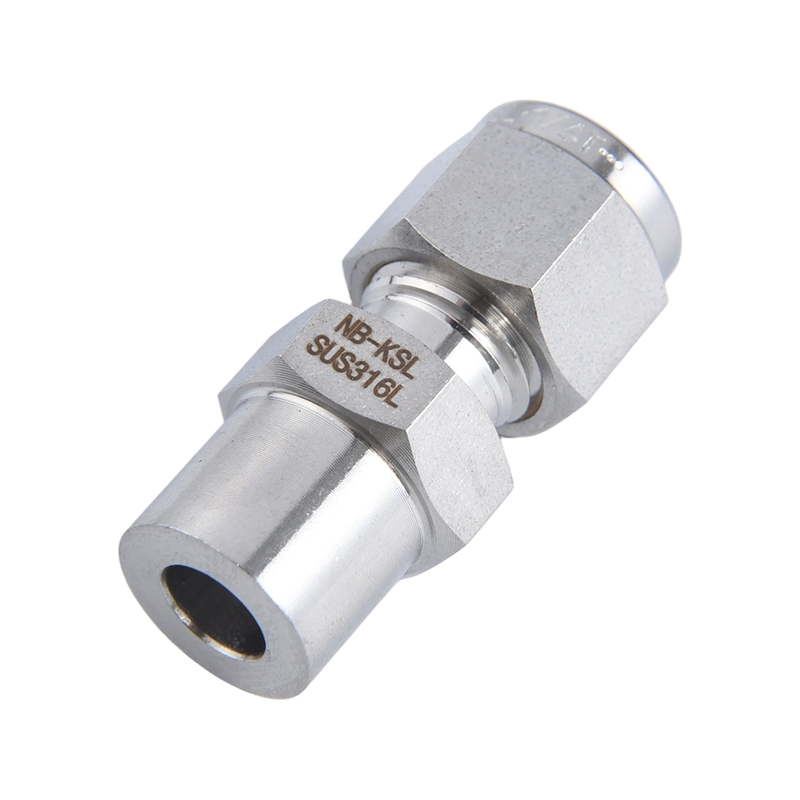

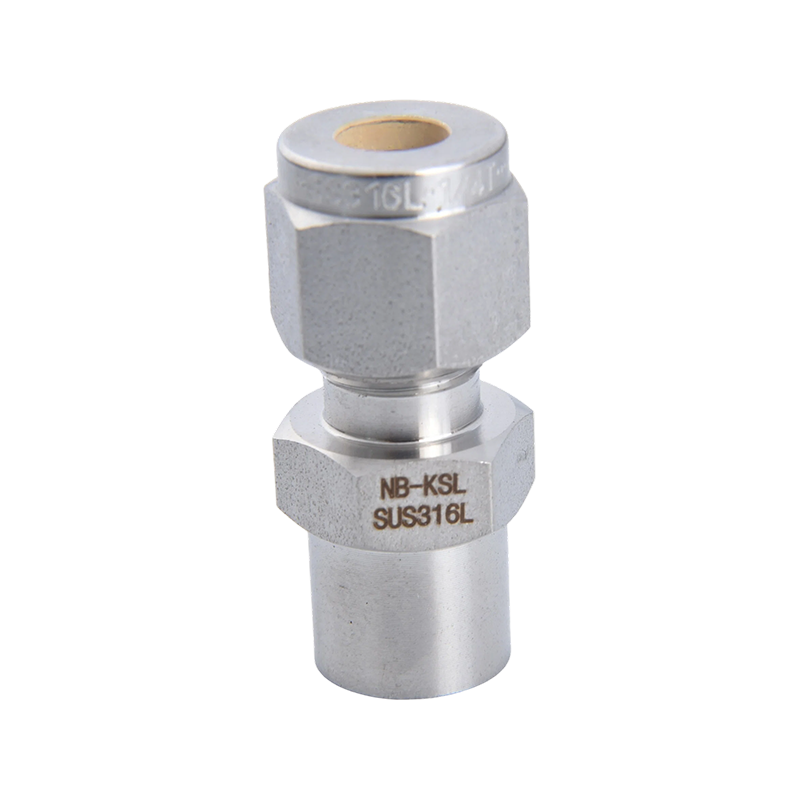

튜브 소켓 용접 헤드에 316L 스테인레스 스틸 압축 피팅

튜브 소켓 용접 헤드에 대한 316L 스테인레스 스틸 압축 피팅은 까다로운 산업용 배관 시스템을 위해 특별히 설계된 고성능 연결 요소입니다. 그 디자인은 압축 피팅과 튜브 소켓 용접 헤드의 장점을 결합합니다. 압축 피팅 섹션은 너트와 이중 내부 튜브 링을 사용하여 파이프를 단단히 고정하고 밀봉합니다. 일부 모델에는 불소고무 또는 PTFE 밀봉 링을 장착하여 밀봉 성능을 향상시킬 수 있으므로 특히 고압 또는 고순도 매체 환경에 적합합니다. 튜브 소켓 용접 헤드 섹션은 고정밀 용접 슬리브를 사용하여 TIG 또는 MIG 용접 공정을 통해 파이프 끝단에 고강도 기계 연결을 형성합니다. 내부 용접 심 디자인은 부드러운 전환을 특징으로 하며 유체 난류 및 매체 축적을 효과적으로 줄여 청결도 요구 사항이 높은 시스템에 적합합니다.

  • 설명
  • 문의하기

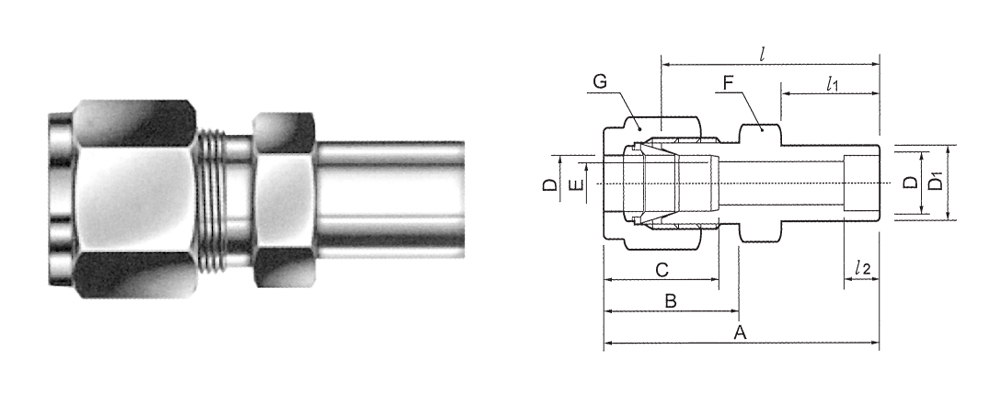

튜브 소켓 용접 커넥터

분수 튜브를 연결합니다

튜브 외경 D 인치 mm

D1

카탈로그
번호

A

B

C

E

F

G

1

/ 1

/2

3.17

7.8

DSW-01-1

29.9

16.5

14

2.4

12

12

22.4

8.6

6.4

6.35

11.1

DSW-02-2

34

17.8

15.8

4.8

12

14

26.2

10.4

7.8

9.52

15.7

DSW-03-3

37.8

19.6

19.6

7.1

16

17

30.2

12

9.7

12.7

19

DSW-04-4

41.2

22.2

23.4

10.4

22

22

31

12

12.7

19.05

26.7

DSW-06-6

43.7

22.4

24.4

15.7

27

30

33.3

12

14.2

25.4

33.3

DSW-08-8

53.1

27

31.7

22.4

35

38

40.4

14.2

19
