316L 스테인레스 스틸 압축 피팅 유형 PIPE 파이프 맞대기 용접 팔꿈치

/ 제품 / 스테인레스 스틸 튜브 피팅 / 튜브 용접 끝 / 316L 스테인레스 스틸 압축 피팅 유형 PIPE 파이프 맞대기 용접 팔꿈치

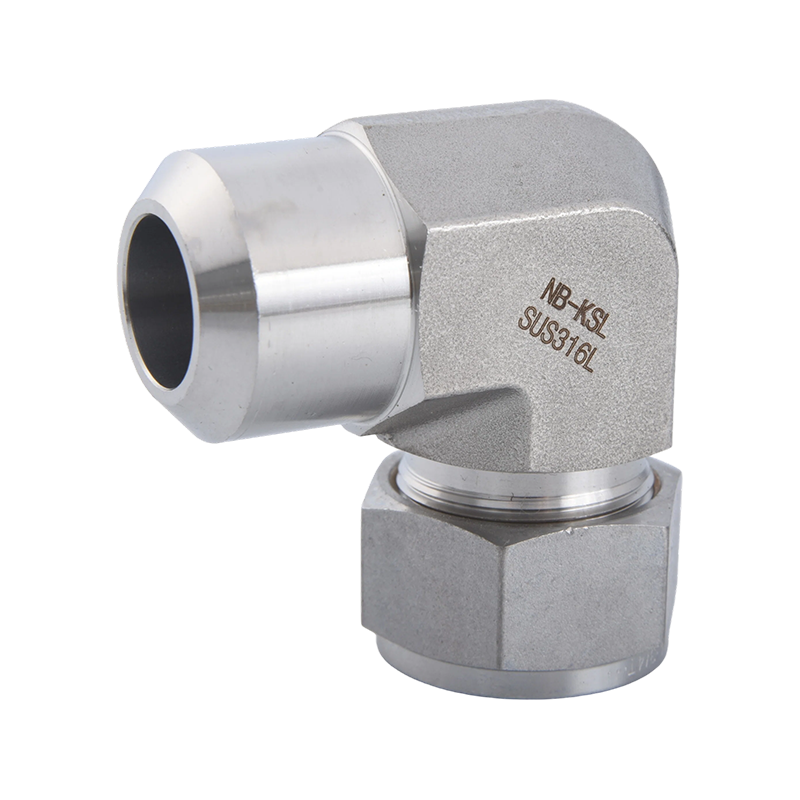

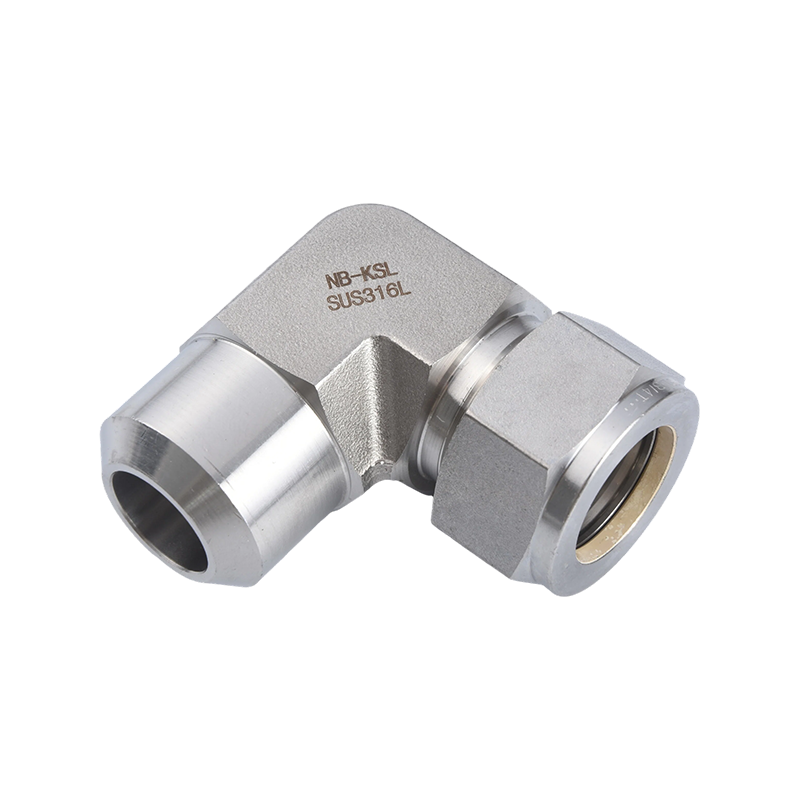

316L 스테인레스 스틸 압축 피팅 유형 PIPE 파이프 맞대기 용접 팔꿈치

이 제품은 까다로운 유체 운송 시스템을 위해 특별히 설계된 고성능 커넥터입니다. 본 엘보는 파이프라인의 흐름 방향을 바꾸는 데 사용되는 파이프 피팅으로 45도 또는 90도 각도로 제공되며, 180도 리턴 엘보도 제작 가능합니다. 구조적 특징은 일반 엘보와 크게 구별됩니다. 파이프 맞대기 끝은 주 파이프라인에 대한 완전 관통 맞대기 용접을 위해 설계되었습니다. 용접 침투 및 용접 품질을 보장하기 위해 끝 부분에 정밀 베벨 처리가 적용됩니다. 압축 연결 끝은 빠르고 용접 없는 연결을 위해 설계되었습니다. 이 끝 부분에는 내부적으로 특정 테이퍼형 밀봉 표면 또는 페룰 구조가 있으며, 이는 너트 및 압축 구성 요소(예: 페룰, O-링 또는 금속 압력 링)와 함께 너트를 조일 때 생성되는 축 압축력을 통해 밀봉 요소를 변형시킵니다.

  • 설명
  • 문의하기

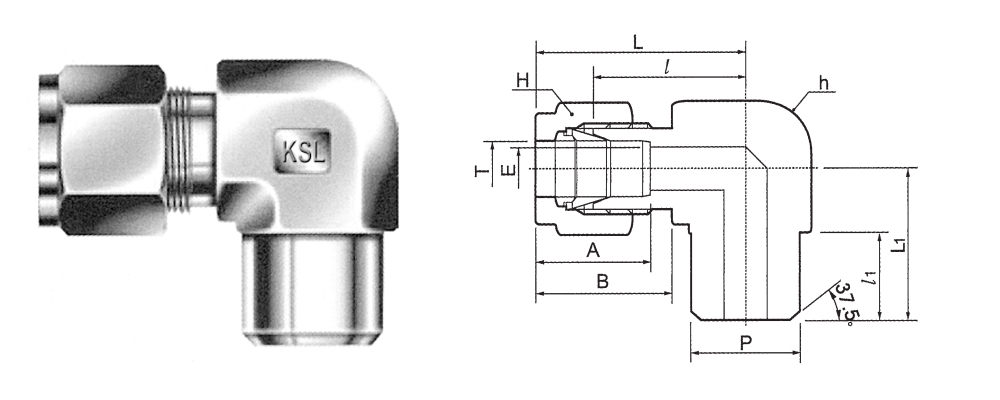

튜브 소켓 용접 엘보

분수 튜브를 파이프에 연결합니다.

T 튜브 O.D.

남성 파이프 SIZI P

카탈로그 번호

A

B

E

h

H

/

/1

L

L1

1/8

10.29

EBW-01-1P

14

16.5

2.4

12.7

12

18.6

10

26.1

19.1

1/4

10.29

EBW-02-1P

15.8

17.8

4.8

15

14

19.6

10

27.1

21.1

1/4

13.72

EBW-02-2P

15.8

17.8

4.8

15

14

23.2

14.2

30.7

23.2

3/8

13.72

EBW-03-2P

19.6

19.6

7.1

15

17

21.3

14.2

27.8

24

1/2

21.34

EBW-044P

23.4

22.2

10.4

23

22

26.5

17

36.5

31

3/4

26.67

EBW-06-6P

24.4

22.4

15.7

28

30

29.7

19

40.1

38.8


분수 튜브를 파이프에 연결합니다.

T 튜브 O.D.

남성 파이프 SIZI P

카탈로그 번호

A

B

E

h

H

1

/

L

L1

8

10.29

EBW-8-1P

16.7

18.7

6.4

15

16

21.3

10

28

21.1

8

13.72

EBW-8-2P

16.7

18.7

6.4

15

16

21.3

14.2

28

24

8

17.15

EBW-8-3P

16.7

18.7

6.4

17.5

16

23.1

14.2

29.8

26

8

21.34

EBW-8-4P

16.7

18.7

6.4

23

16

25.5

17

32.2

31

10

13.72

EBW-10-2P

19.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

10

17.15

EBW-10-3P

16.6

19.6

7.9

17.5

19

23.9

14.2

30.9

26

12

13.72

EBW-12-2P

23.8

22.8

9.5

23

22

26.5

14.2

37

28.2

12

17.15

EBW-12-3P

23.8

22.8

9.5

23

22

26.5

14.2

37.3

28.2

12

21.34

EBW-12-4P

23.8

22.8

9.5

23

22

26.5

17

37.3

31

14

21.34

EBW-14-4P

24.8

22.8

11.1

23

27

26.5

17

37.3

31

16

21.34

EBW-16-4P

24.4

22.4

12.7

23

27

26.5

17

36.9

31

16

26.67

EBW-16-6P

24.4

22.4

12.7

28

27

29.7

19

40.1

38.8

20

21.34

EBW-20-4P

25.5

23.5

15.8

28

32

32

17

42.5

38.5

20

26.67

EBW-20-6P

25.5

23.5

15.8

28

32

32

19

42.5

38.5

25

26.67

EBW-25-6P

31.7

27

21.8

35

38

36.8

19

50.5

41.7
