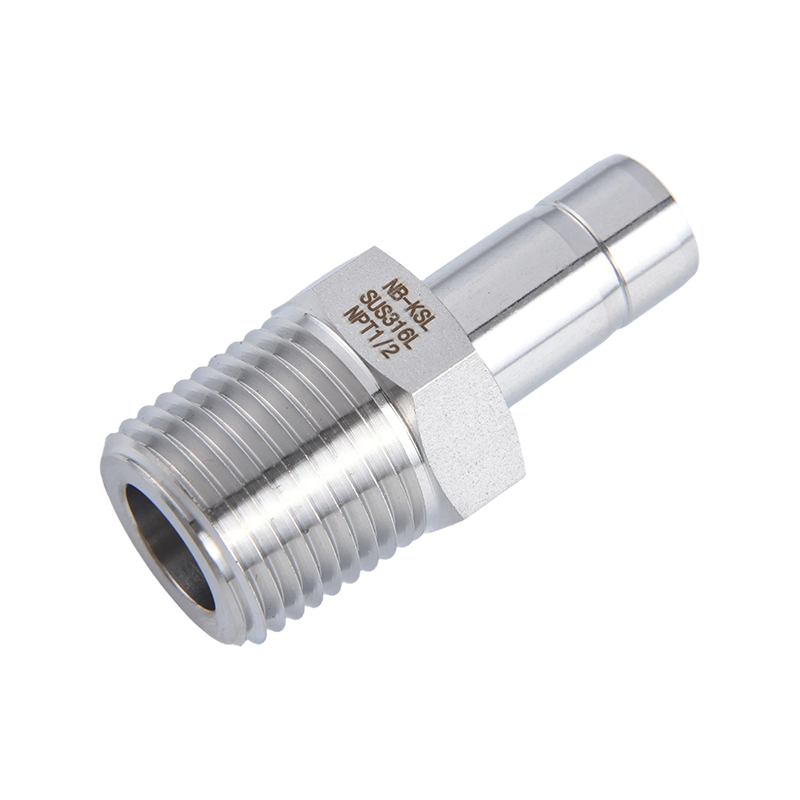

316L 스테인레스 스틸 파이프 - 파이프 스레드 어댑터

316L 스테인레스 스틸 파이프 - 파이프 스레드 어댑터는 화학, 제약, 식품 가공, 석유, 천연 가스, 해수 처리 및 고온, 부식성이 높은 환경에서 널리 사용되는 고성능 파이프 커넥터입니다. 직경이 다르거나 동일한 두 개의 파이프를 나사산을 통해 안전하게 연결하여 유체나 가스를 안전하게 운반할 수 있습니다. 화학 공장 및 정유소에서 316L 파이프 스레드 어댑터는 산 및 알칼리 용액, 용매 및 고온 부식성 매체를 운반하는 데 사용할 수 있어 파이프라인 시스템의 장기적으로 안정적인 작동을 보장합니다. 위생 기준이 매우 높은 식품 가공 및 제약 산업에서 316L 소재는 유해 물질을 방출하지 않으며 매끄러운 표면은 미생물 성장을 감소시킵니다. 고압 가스 및 액화 가스 운송에도 적합합니다. 나사형 연결은 신뢰성이 높고 누출 방지 기능이 있으며 압력 변동 및 온도 변화를 견딜 수 있습니다.

  • 설명
  • 문의하기

남성  어댑터/튜브

분수형 NB-KSL 포트를 암 PT(NPT) 스레드에 연결합니다.

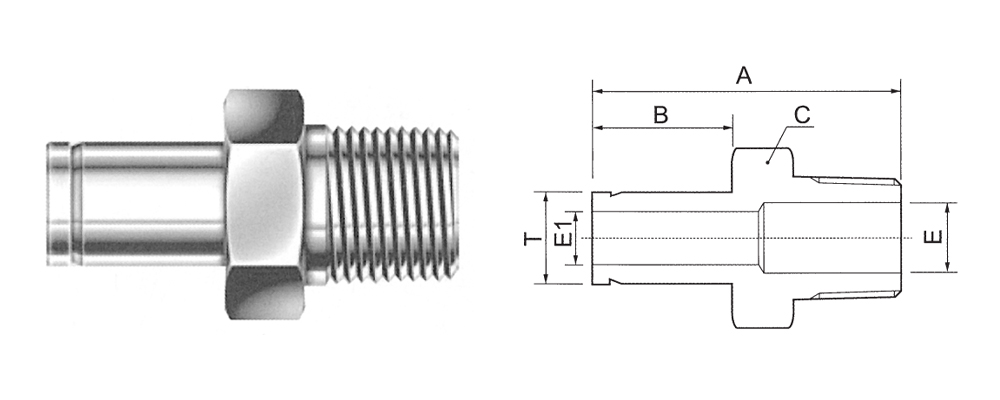

카탈로그 번호

T 튜브 외경

PT-NPT 여성 파이프 크기

A

B

C

E

E1

TAM-6-1

6

1/8

32.8

15.7

12

4.6

4.6

TAM-6-2

6

1/4

38.1

15.7

14

7.1

4.6

TAM-6-4

6

1/2

43.4

15.7

22

11.9

4.6

TAM-8-2

8

1/4

39.1

16.5

14

6.3

6.3

TAM-10-2

10

1/4

39.9

17.6

14

7.1

7.1

TAM-10-3

10

3/8

40.6

17.6

17

9.5

7.1

TAM-10-4

10

1/2

43.4

17.6

22

11.9

7.1

TAM-12-2

12

1/4

44.5

23.2

14

7.1

9.5

TAM-12-3

12

3/8

43.7

23.2

17

9.5

9.5

TAM-12-4

12

1/2

50.5

23.2

22

11.9

9.5

TAM-14-4

14

1/2

50.5

24.7

22

11

11

TAM-16-4

16

1/2

50.5

24.7

22

11.9

11.9

TAM-18-4

18

1/2

52.3

24.7

22

11.9

14

TAM-18-6

18

3/4

52.3

24.7

27

14

14

TAM-25-4

25

1/2

57.9

30.7

27

11.9

19.6

TAM-25-6

25

3/4

57.9

30.7

27

15

19.6

TAM-25-8

25

1"

65.1

30.7

35

19.6

19.6

모든 치수는 달리 지정되지 않은 여러 개의 단위로 표시되며 참조 항목이 변경되는 경우에만 해당됩니다.
