316L 스테인레스 스틸 압축 피팅 외부 스레드 분기 티

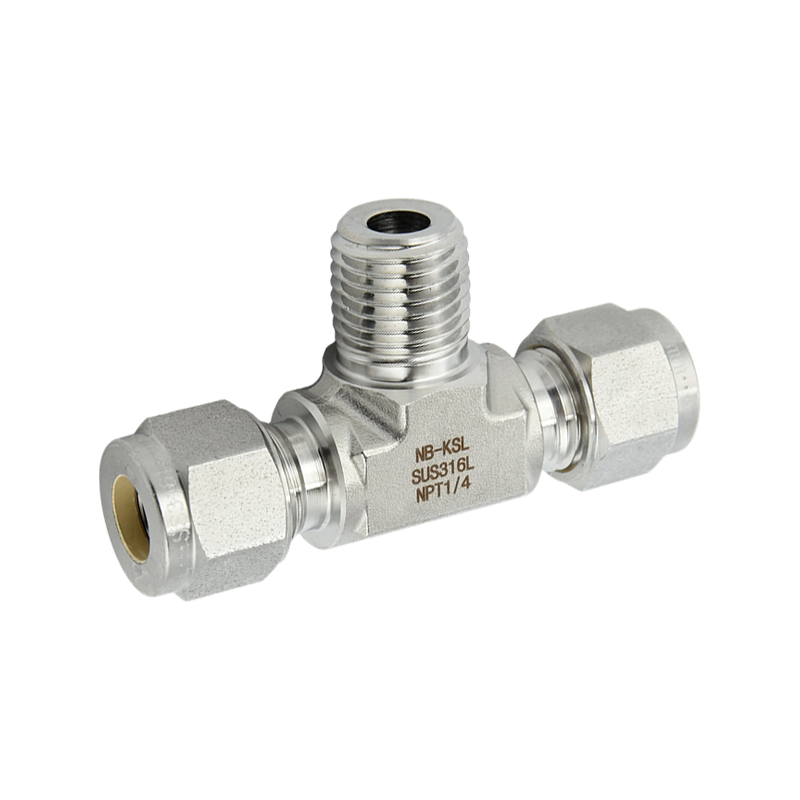

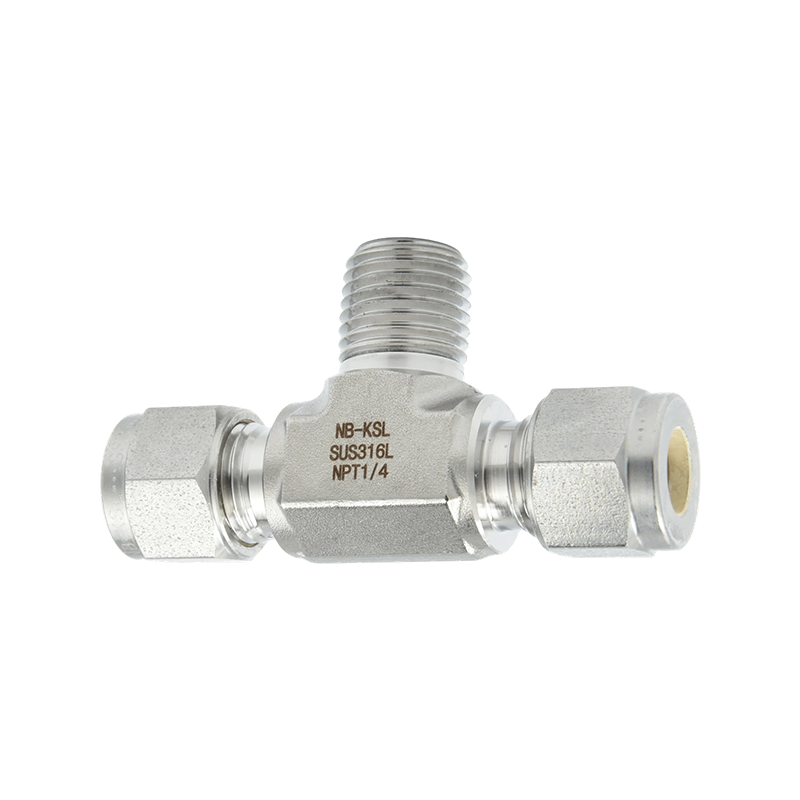

Male Branch Tee는 계측 배관 시스템의 필수 구성 요소입니다. 측면 분기에 수나사 포트가 있고, 런에 있는 두 포트는 압축 튜브 피팅입니다. 이 설계를 통해 메인 튜빙 라인을 수평으로 확장하는 동시에 밸브, 트랜스미터 또는 압력 용기에 수직으로 연결할 수 있습니다.

핵심 제품 장점

통합 분기 구조:
이 피팅은 튜브 연결과 장비 분기를 교묘하게 결합합니다. 여러 개의 어댑터를 사용하는 것에 비해 일체형 단조 T 구조는 잠재적인 누출 지점을 크게 줄이고 진동 피로에 대한 탁월한 저항력을 제공합니다.

최고의 316L 부식 방지:
초저탄소 316L 스테인리스강으로 제조되어 공식 및 입계 부식에 대한 저항성이 뛰어납니다. 이는 가혹한 화학 처리, 해양 플랫폼 또는 수소 응용 분야에서도 장기적인 시스템 안정성을 보장합니다.

기밀 고압 씰링:
2개의 실행 포트는 고전적인 이중 페럴 기술을 활용하는 반면, 수나사형 브랜치는 정밀하게 연마되었습니다. 최대 6000 psig의 고압에서 작동하든 침투성이 높은 가스(예: 수소 또는 헬륨)를 처리하든 일관된 "누출 없음" 성능을 유지합니다.

편리한 설치 유연성:
수나사형 끝단은 다양한 국제 표준(NPT, BSPT 등)을 지원하므로 다양한 장비 포트에 쉽게 통합할 수 있습니다. 표준 설치 절차에 따라 간단한 렌치를 사용하여 안정적인 밀봉을 달성할 수 있으며 피팅은 여러 번의 분해 및 재조립 주기를 지원합니다.

  • 설명
  • 문의하기

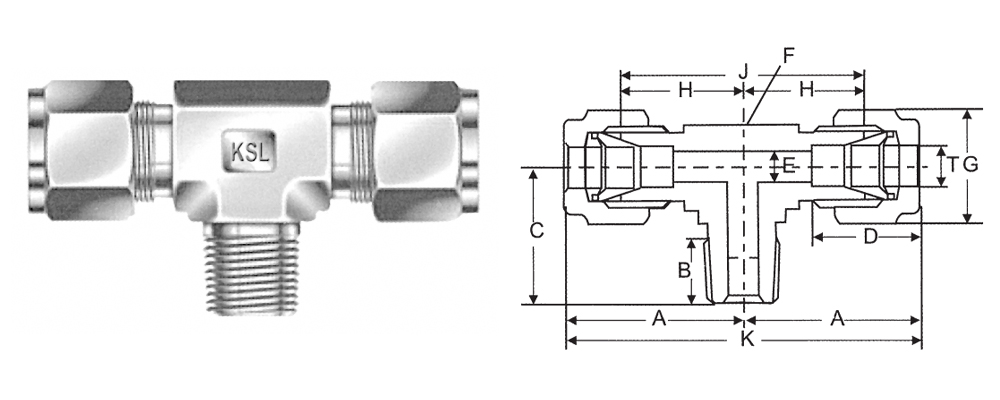

(미터법)

카탈로그 번호

T 튜브 O.D.

PT-NPT 남성 파이프 크기

A

B

C

D

E

F

G

H

J

K

MBT-4-1

4

1/B

25.7

10

19.6

13.7

3

12.7

12

19

38

51.4

MBT-4-2

4

1/4

27.5

14

24

13.7

3

16

12

20.8

41.6

55

MBT-6-1

6

1/8

274

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-6-2

6

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-6-3

6

3/B

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-6-4

6

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

63.4

MBT-8-1

8

1/8

30.1

10

21

16.7

6

16

16

22.4

44.8

602

MBT-8-2

8

1/4

30.1

14

24

16.7

6

16

16

22.4

44.8

602

MBT-8-3

8

3/B

30.8

14

24.5

16.7

6

17.5

16

23.1

46.2

61.6

MBT-8-4

8

1/2

32.6

19

33

16.7

6

20.6

16

24.9

49.8

652

MBT-10-1

10

1/8

33.5

10

22.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-2

10

1/4

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-3

10

3/B

33.5

14

26.5

19.6

7.9

17.5

19

25.9

51.8

67

MBT-10-4

10

12

33.5

19

33

19.6

7.9

20.6

19

25.9

51.8

67

MBT-12-2

12

1/4

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-3

12

3/B

36.7

14

28.2

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-4

12

12

36.7

19

33

23.8

9.5

20.6

22

25.9

51.8

73.4

MBT-12-6

12

3/4

38.8

19

36.8

23.8

9.5

28

22

28

56

77.6

MBT-14-3

14

3/B

39.5

14

29

24.8

11.1

22

27

28.7

57.4

79

MBT-14-4

14

12

39.5

19

34

24.8

11.1

22

27

28.7

57.4

79

MBT-14-6

14

314

38.8

19

36.8

24.8

11.1

28

27

28

56

77.6

MBT-16-3

16

3/B

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-16-4

16

1/2

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-16-6

16

3/4

38.4

19

36.8

24.4

12.7

28

27

28

56

76.8

MBT-18-3

18

3/B

38.8

14

32.5

24.8

15.1

28

30

28

56

77.6

MBT-18-4

18

1/2

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-18-6

18

34

38.8

19

36.8

24.8

15.1

28

30

28

56

77.6

MBT-20-4

20

1/2

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-20-6

20

34

46

19

41.7

25.5

15.9

34.5

32

35.5

71

92

MBT-22-4

22

12

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-22-6

22

3/4

46

19

41.7

25.5

18.3

34.5

32

35.5

71

92

MBT-25-4

25

1/2

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-6

25

34

49.5

19

41.7

31.7

21.8

34.5

38

36.8

73.6

99

MBT-25-8

25

1

49.5

22

44.5

31.7

21.8

34.5

38

36.8

73.6

99


(소수)

MBT-01-1

1/8

1/B

26.1

10

19.6

14

2.4

12.7

12

18.6

37.2

52.2

MBT-01-2

1/8

1/4

28

14

24

14

2.4

16

12

20.5

41

56

MBT-02-1

1/4

1/8

27.4

10

19.6

15.8

4.8

12.7

14

19.6

39.2

54.8

MBT-02-2

1/4

1/4

292

14

24

15.8

4.8

16

14

21.4

42.8

58.4

MBT-02-3

1/4

3/8

302

14

24.5

15.8

4.8

17.5

14

22.4

44.8

60.4

MBT-02-4

1/4

12

31.7

19

33

15.8

4.8

20.6

14

23.9

47.8

634

MBT-03-1

3/8

1/B

30.7

14

21

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-2

3/8

1/4

30.7

14

24

19.6

7.1

16

17

23.1

46.2

61.4

MBT-03-3

3/8

3/B

30.7

14

24.5

19.6

7.1

17.5

17

23.1

46.2

61.4

MBT-03-4

3/8

12

33.5

19

33

19.6

7.1

20.6

17

25.9

51.8

67

MBT-04-2

1/2

1/4

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-3

1/2

3/8

36.1

14

28.2

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-4

1/2

1/2

36.1

19

33

23.4

10.4

20.6

22

25.9

51.8

722

MBT-04-6

1/2

314

382

19

36.8

23.4

10.4

28

22

28

56

76.4

MBT-05-3

5/8

3/B

39.1

14

29

24.4

12.7

22

27

28.7

57.4

782

MBT-05-4

5/8

12

39.1

19

34

24.4

12.7

22

27

28.7

57.4

782

MBT-05-6

5/8

34

38.4

19

36.8

24.4

127

28

27

28

56

768

M BT-06-4

3/4

12

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-06-6

3/4

314

38.4

19

36.8

24.4

15.7

28

30

28

56

76.8

MBT-08-6

1"

3/4

49.5

19

41.7

31.7

22.4

34.5

38

36.8

73.6

99

MBT-08-8

1"

1"

49.5

22

44.5

31.7

22.4

34.5

38

36.8

73.6

99
