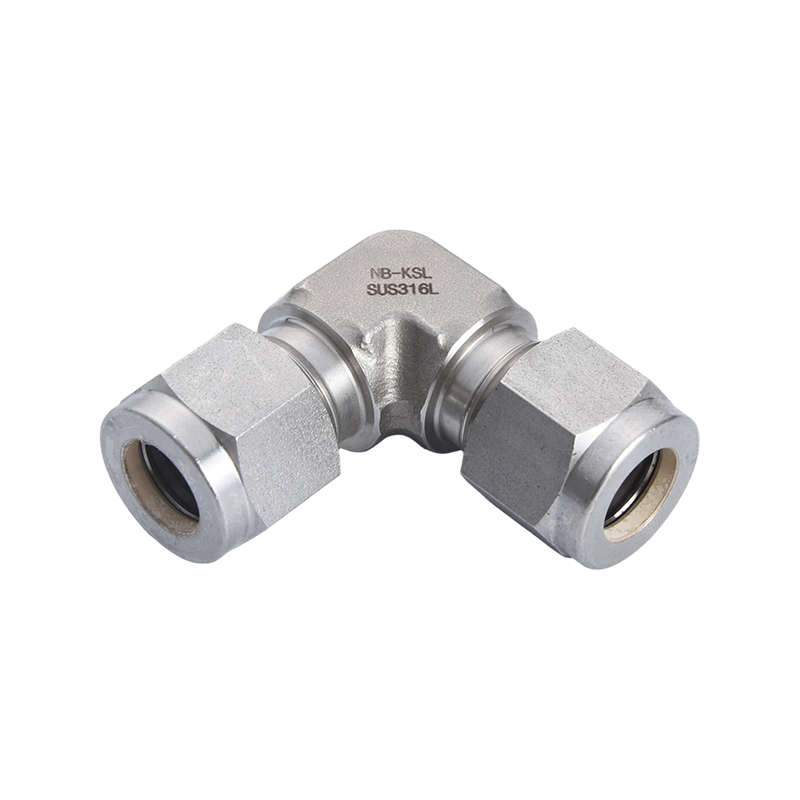

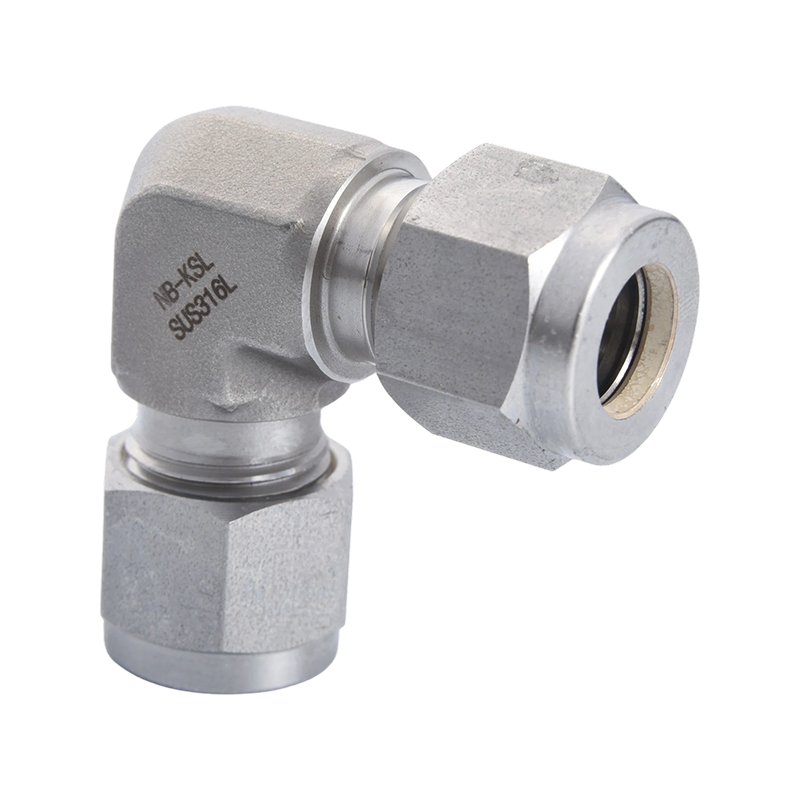

316L 스테인레스 스틸 압축 피팅 팔꿈치

/ 제품 / 스테인레스 스틸 튜브 피팅 / 튜브 투 유니온 / 316L 스테인레스 스틸 압축 피팅 팔꿈치

316L 스테인레스 스틸 압축 피팅 팔꿈치

복잡한 배관 레이아웃에서는 90도 회전이 압력 변동과 흐름 저항이 가장 집중되는 경우가 많습니다. 당사의 316L 스테인레스 스틸 이중 페럴 엘보는 이러한 과제를 해결하기 위해 특별히 설계되었습니다. 이는 단순한 방향성 커넥터가 아닙니다. 이는 시스템의 안전 경계를 강력하게 확장합니다.

왜 이 팔꿈치를 선택합니까?
정밀 단조 본체: 저가형 용접 대체품과 달리 이 제품은 316L 정밀 단조 공정을 사용하여 제조됩니다. 이는 용접과 관련된 응력 집중의 위험을 제거합니다. 최적화된 내부 흐름 경로는 매체가 회전을 통해 전환될 때 압력 강하를 최소화합니다.
최고의 재료 순도: 초저탄소 316L 등급은 최고 수준의 내식성을 제공합니다. 산성 가스, 해양 염수 분무 또는 공격적인 반도체 공정 가스에 장기간 노출되는 경우에도 구조적 무결성을 유지합니다.
하드코어 밀봉 성능: 이중 페룰 기계적 잠금 구조를 활용하여 조이는 동안 페룰이 튜브 표면과 정확하게 맞물려 기밀 금속 대 금속 밀봉을 생성합니다. 초고압(최대 6000psi) 및 극한의 열 사이클링에서 탁월한 안정성을 보여줍니다.
공간 레이아웃 효율성: 컴팩트한 디자인 덕분에 제한된 인클로저나 제어 패널 내에 튜브를 정밀하게 설치할 수 있어 시스템 레이아웃이 미적이며 전문적으로 유지됩니다.

  • 설명
  • 문의하기

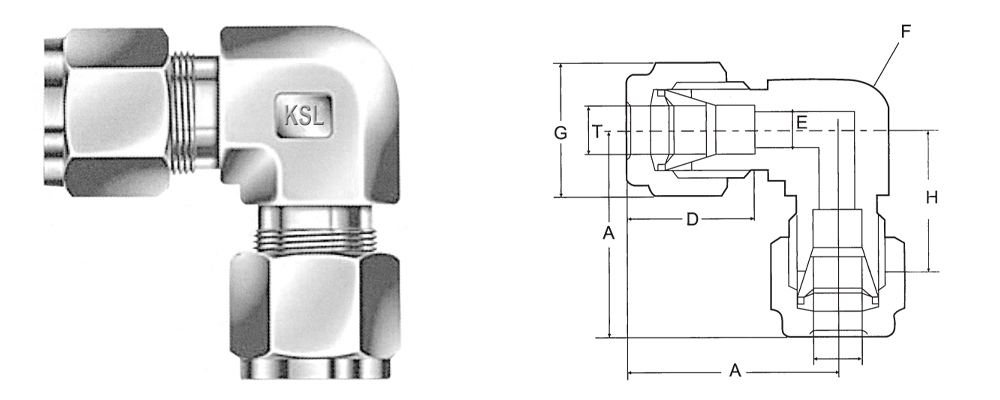

(미터법)

카탈로그 번호

튜브 외경

A

D

E

F

G

H

UE-3-0

3

23.5

13.5

2.4

9.5

12

16.5

UE-4-0

4

25.8

13.7

3

12.7

12

19.1

UE-6-0

6

27.8

15.8

4.8

12.7

14

20

UE-8-0

8

28.7

16.7

6.4

15

16

21

UE-10-0

10

31.6

19.6

7.9

17

19

24

UE-12-0

12

36.7

23.8

9.5

21

22

25.9

UE-14-0

14

38.8

24.8

11.1

24

27

28

UE-15-0

15

38.4

24.4

11.9

24

27

28

UE-16-0

16

38.4

24.4

12.7

24

27

28

UE-18-0

18

39.3

24.8

15.1

28

30

28.5

UE-20-0

20

43

25.5

15.9

32

32

32.5

UE-22-0

22

43

25.5

18.3

32

32

32.5

UE-25-0

25

47.7

31.7

21.8

34.5

38

35


(소수)

UE-01-0

1/8

24

14

2.4

9.5

12

16.5

UE-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

UE-03-0

3/8

30.7

19.6

7.1

17

17

23.1

UE-04-0

1/2

36.3

23.4

10.4

21

22

25.9

UE-05-0

5/8

38.4

24.4

12.7

24

27

28

UE-06-0

3/4

38.9

24.4

15.7

28

30

28.5

UE-08-0

1"

47.7

31.7

22.4

34.5

38

35
