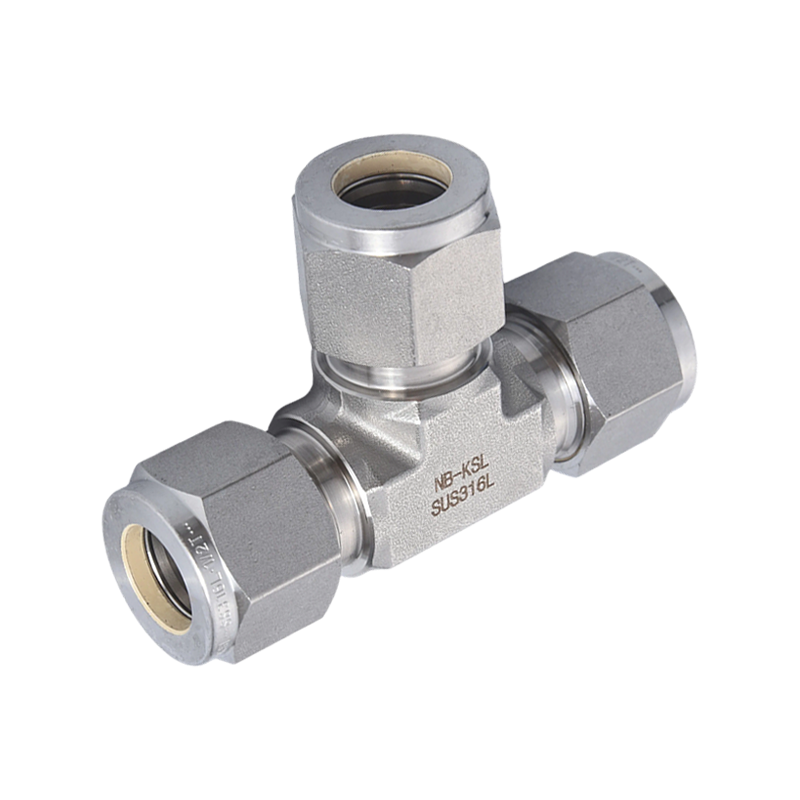

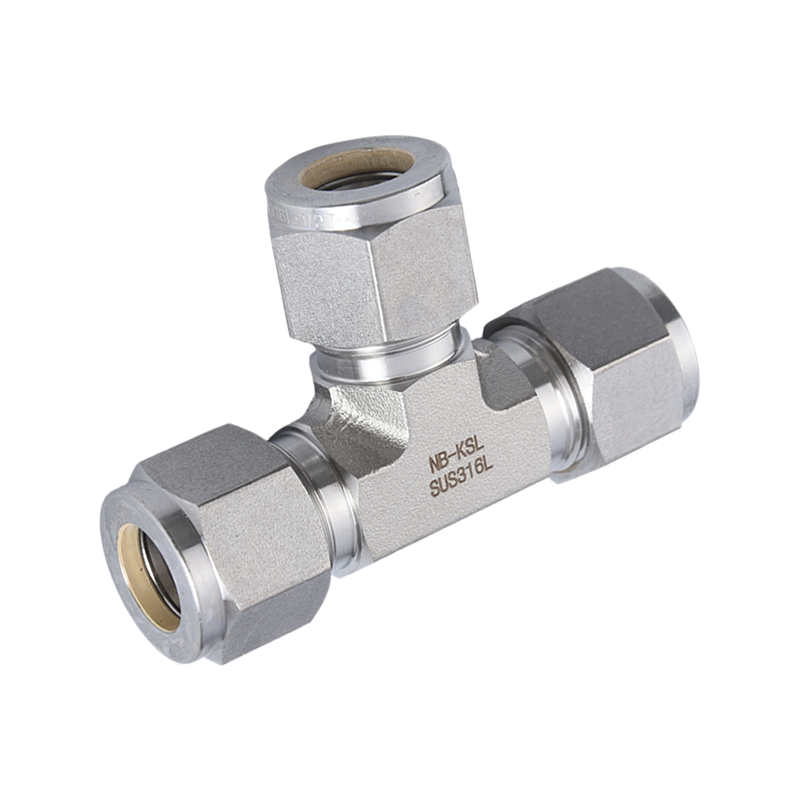

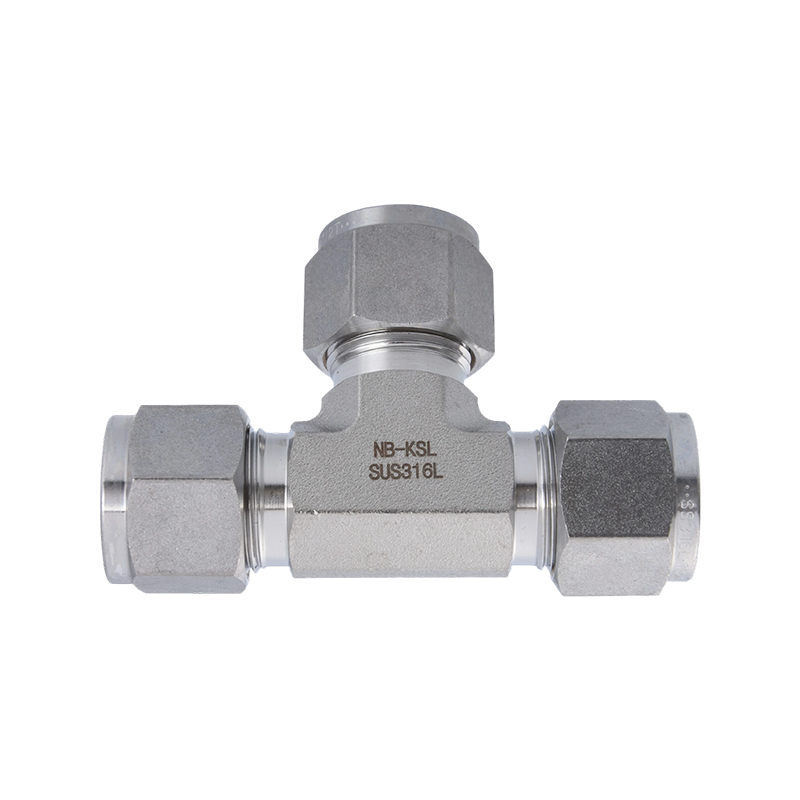

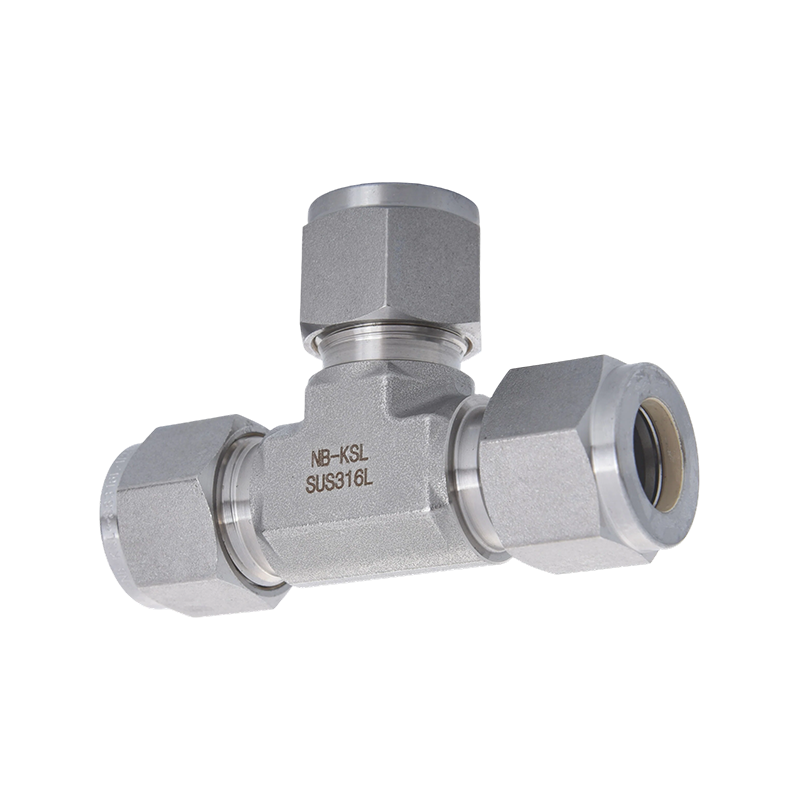

316L 스테인레스 스틸 압축 피팅 티

316L 스테인리스 스틸 압축 유니온 티: 고압 시스템을 위한 정밀 분기
1-in-2-out 또는 2-in-1-out 유체 구성용으로 설계된 이 유니온 티는 모든 연결 지점에서 기밀 무결성을 유지하면서 균형 잡힌 압력 분포를 보장합니다.

핵심 가치 제안
막힘 없는 흐름 설계: 정밀 단조 316L 스테인리스 스틸로 제작되었으며 내부 흐름 경로는 부드럽고 대칭적입니다. 이는 유체 분기 중 난류와 압력 강하를 최소화하여 일관된 하류 압력을 보장합니다.
삼중 씰링 신뢰성: 이중 페룰 기계적 그립 기술은 세 포트 모두에서 독립적이고 안정적인 금속 간 씰을 생성하여 최대 6000psi의 고압 충격을 쉽게 처리합니다.
극한 환경 탄력성: 저탄소 316L 소재는 공식 및 황화물 응력 부식에 대한 고유한 저항성을 제공하므로 수소 에너지, 해양 엔지니어링 및 정밀 화학 응용 분야에 신뢰할 수 있는 선택입니다.
마모 방지 엔지니어링: 너트는 나사산 마모를 방지하기 위해 정밀하게 나사산 처리되어 있으며 (내부적으로) 은도금 처리된 경우도 많습니다. 이는 대량 조립 중에 일관된 토크와 설치 용이성을 보장합니다.

  • 설명
  • 문의하기

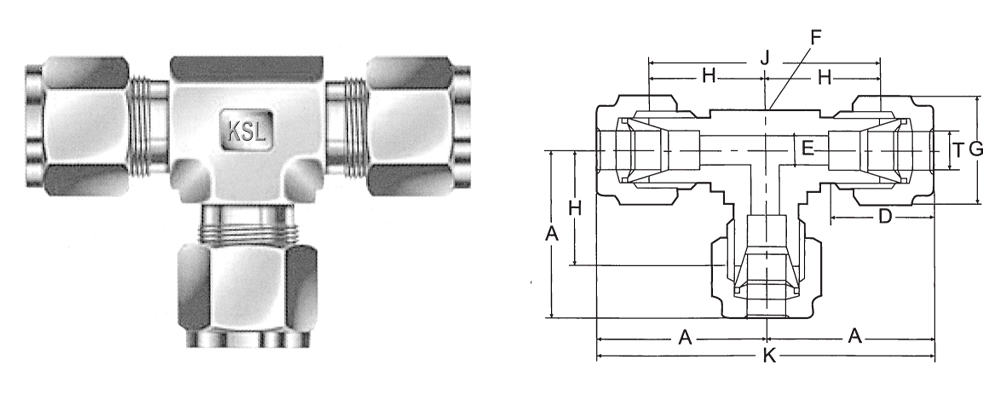

(미터법)

카탈로그 번호

튜브 외경

A

D

E

F

G

H

J

K

UT-3-0

3

22.7

13.5

2.4

9.5

12

15.7

31.4

45.4

UT-4-0

4

25.7

13.7

3

12.7

12

19

38

51.4

UT-6-0

6

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-8-0

8

30.1

16.7

6

16

16

22.4

44.8

60.2

UT-10-0

10

31.5

19.6

7.9

17.5

19

23.9

47.8

63

UT-12-0

12

36.7

23.8

9.5

19

22

25.9

51.8

73.4

UT-14-0

14

38.8

24.8

11.1

24

27

28

56

77.6

UT-15-0

15

38.4

24.4

11.9

24

27

28

56

76.8

UT-16-0

16

38.4

24.4

12.7

24

27

28

56

76.8

UT-18-0

18

39.3

24.8

15.1

28

30

28.5

57

78.6

UT-20-0

20

44

25.5

15.9

32

32

33.5

67

88

UT-22-0

22

44

25.5

18.3

32

32

33.5

67

88

UT-25-0

25

47.7

31.7

21.8

34.5

38

35

70

95.4


(소수)

UT-01-0

1/8

23.2

14

2.4

9.5

12

15.7

31.4

46.4

UT-02-0

1/4

27.4

15.8

4.8

12.7

14

19.6

392

54.8

UT-03-0

3/8

30.7

19.6

7.1

16

17

23.1

462

61.4

UT-04-0

1/2

36.1

23.4

10.4

19

22

25.9

52

72.2

UT-05-0

5/8

38.4

24.4

12.7

24

27

28

56

76.8

UT-06-0

3/4

38.9

24.4

15.7

28

30

28.5

57

77.8

UT-08-0

1"

47.7

31.7

22.4

34.5

38

35

70

95.4
