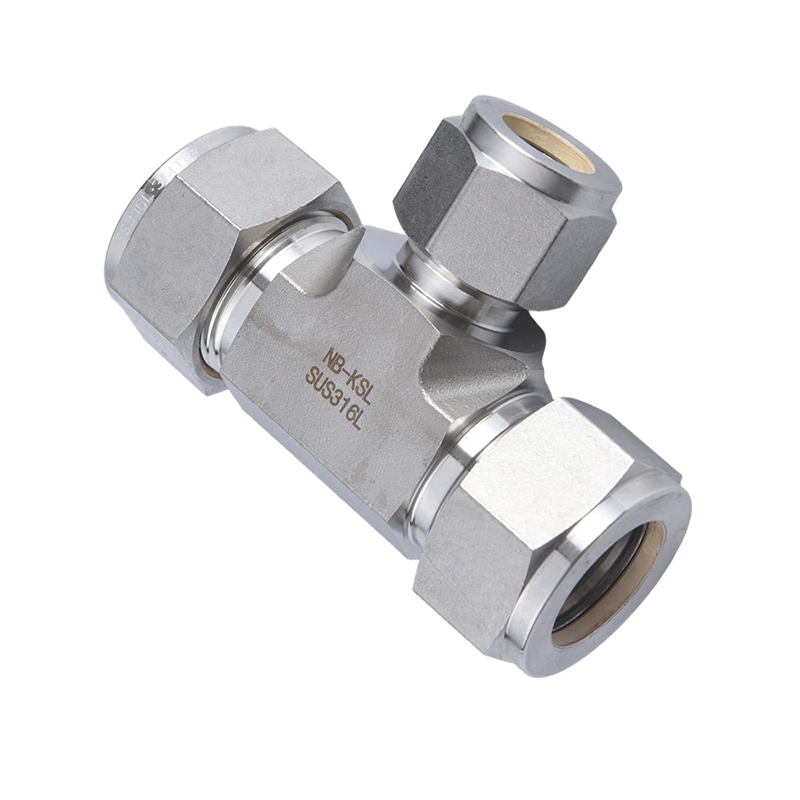

316L 스테인레스 스틸 압축 피팅 감소 티

/ 제품 / 스테인레스 스틸 튜브 피팅 / 튜브 투 유니온 / 316L 스테인레스 스틸 압축 피팅 감소 티

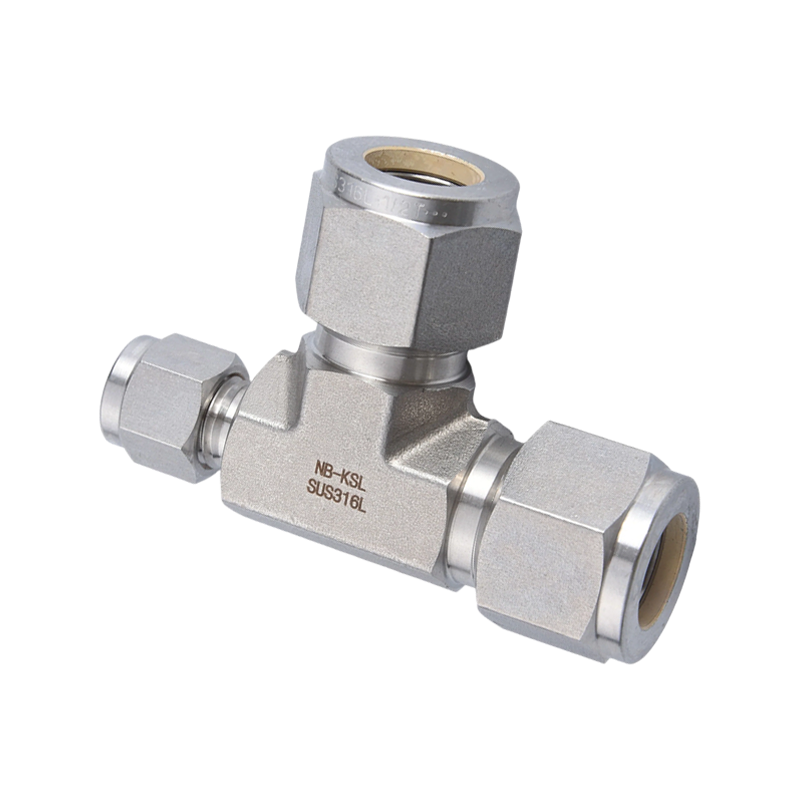

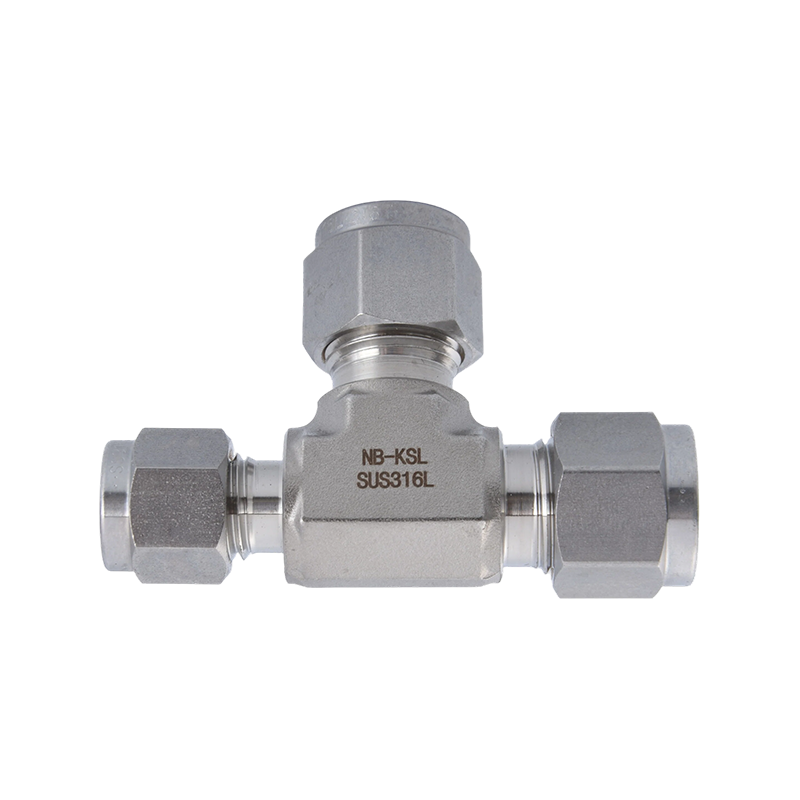

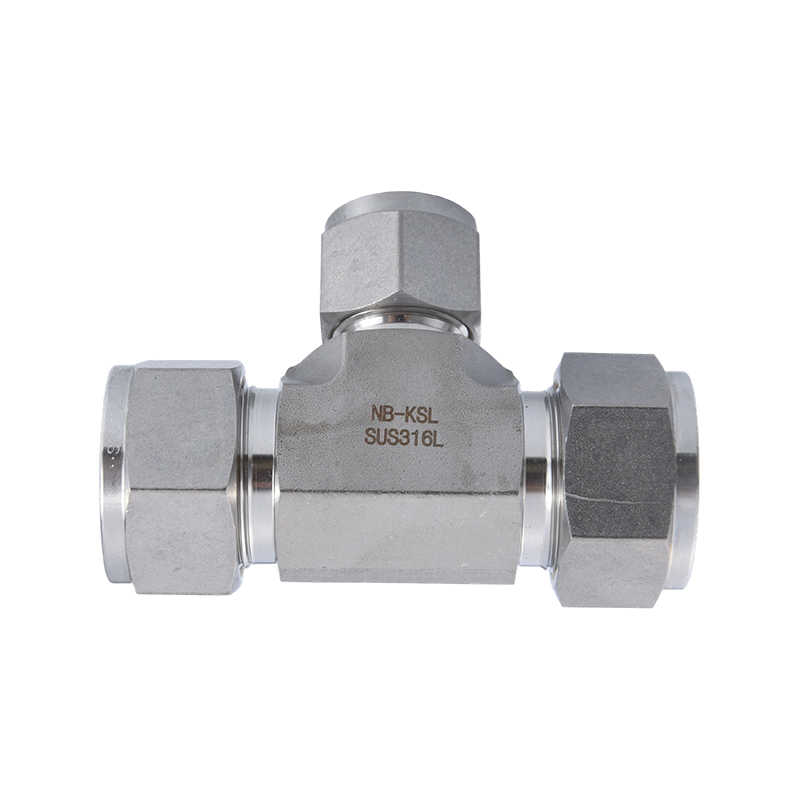

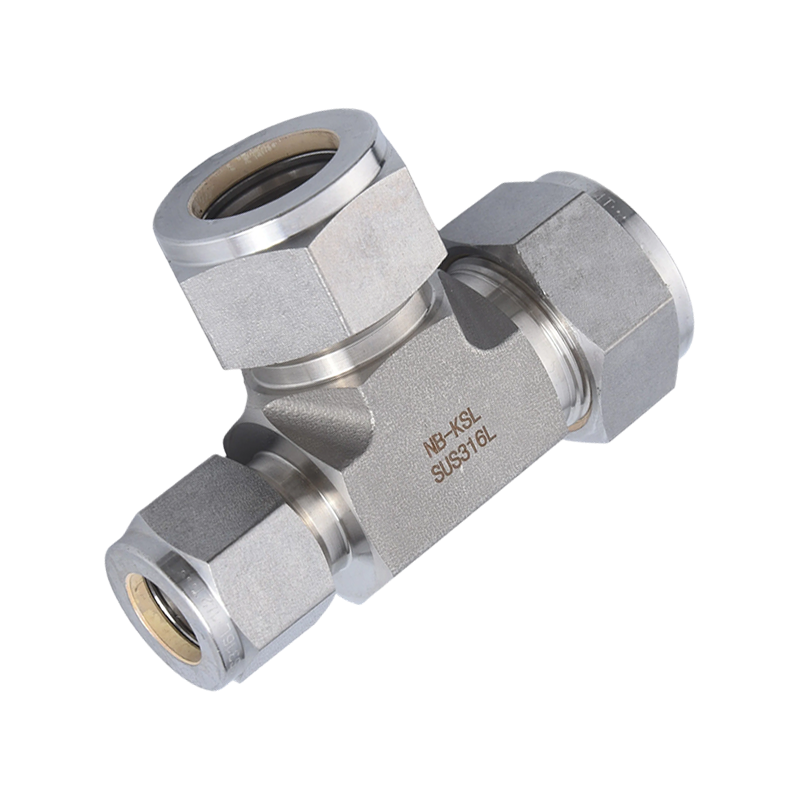

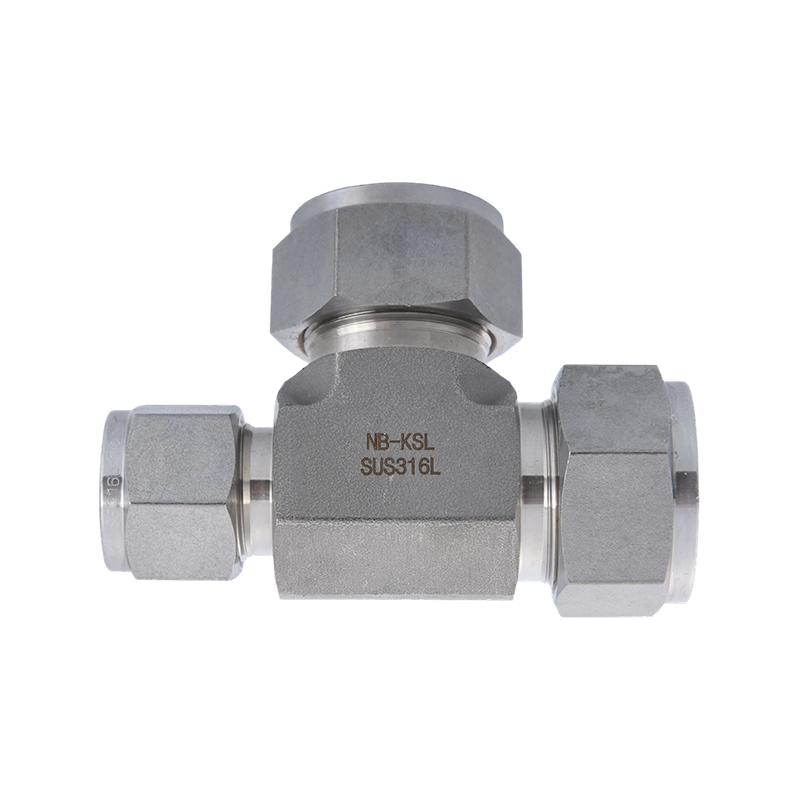

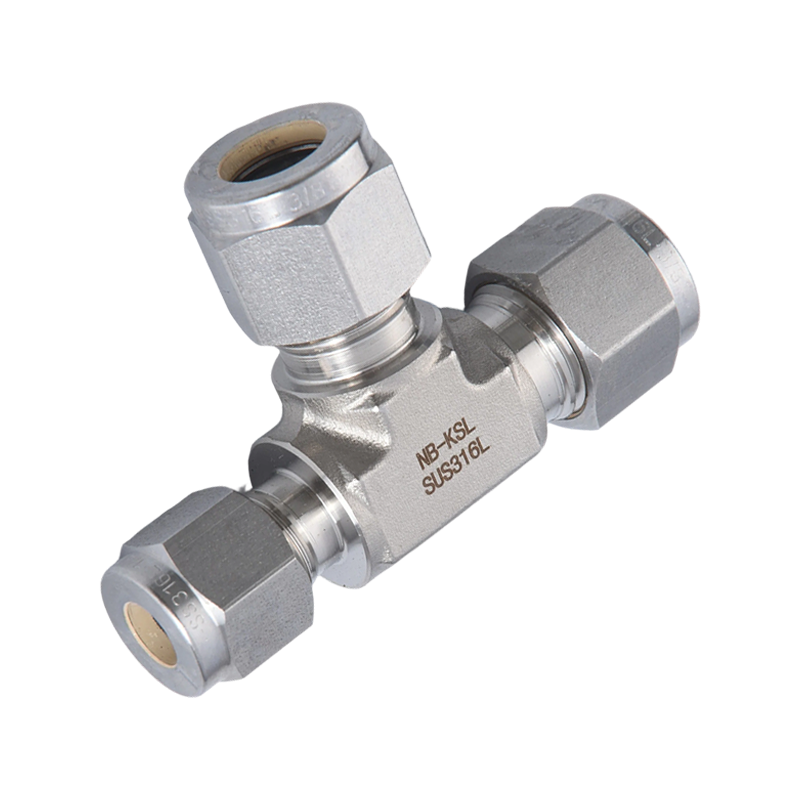

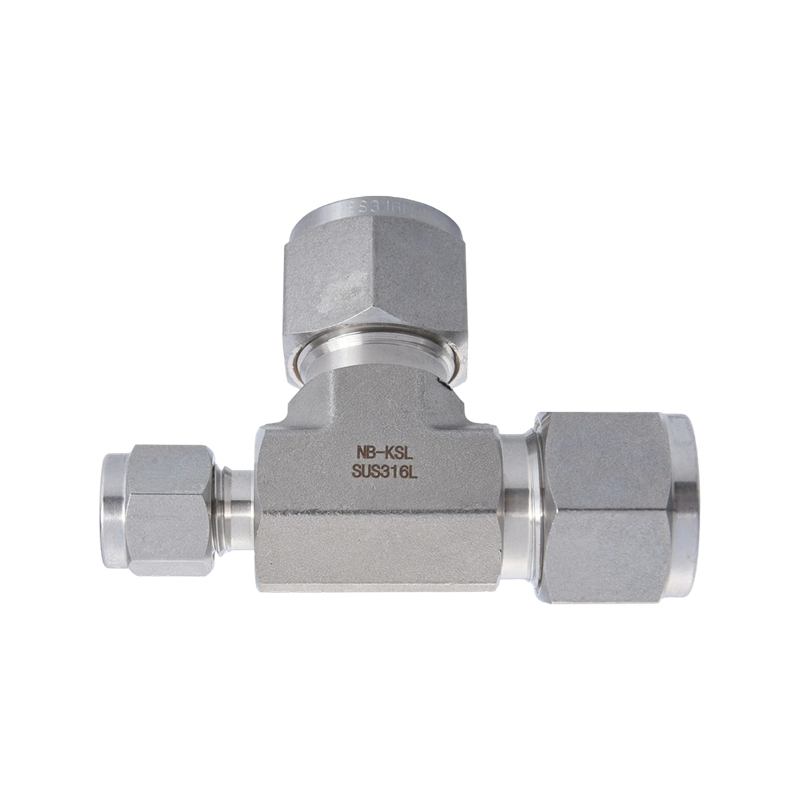

316L 스테인레스 스틸 압축 피팅 감소 티

복잡한 산업용 유체 시스템에서 316L 스테인레스 스틸 압축 감소 유니온 티는 메인 라인과 분기 라인 간의 효율적인 연결을 위한 중요한 구성 요소입니다. 방향성 흐름과 튜브 크기 감소를 단일 피팅에 통합함으로써 필요한 연결 수를 크게 줄입니다. 이를 통해 설치 공간이 최적화되고 잠재적인 누출 지점 위험이 근본적으로 낮아집니다.

핵심 제품 장점

고성능 316L 재료 보증:
고품질 316L(ASTM A276 또는 A479) 저탄소 스테인리스 스틸로 제조되었습니다. 피팅에 대한 탁월한 저항성과 화학적 안정성이 뛰어나 산성 환경, 해양 대기 및 고순도 공정에서 긴 사용 수명을 보장합니다.
이중 페럴 기계적 잠금 기술:
고전적인 이중 페럴 디자인을 활용한 전면 페럴은 누출 방지 금속 씰을 생성하고 후면 페럴은 튜브를 강력하게 고정합니다. 이 구조는 연결을 줄이는 일반적인 비대칭 압력 부하에서도 최대 6000psig까지 기밀 안정성을 유지합니다.

유체 역학 최적화:
피팅 본체는 부드러운 내부 흐름 전환으로 정밀하게 단조되었습니다. 이 설계는 직경 변경 지점에서 난류와 압력 손실을 최소화하여 공정 매개변수의 정밀한 제어를 보장합니다.

가혹한 환경에 대한 적응성:
진동, 주기적 압력 및 극한 온도에 대한 엄격한 테스트를 통해 이 피팅은 섭씨 영하 196도에서 649도 범위의 열 사이클을 견딜 수 있습니다. 수소 에너지, 반도체, 석유화학 계측 시스템에 이상적인 선택입니다.

  • 설명
  • 문의하기

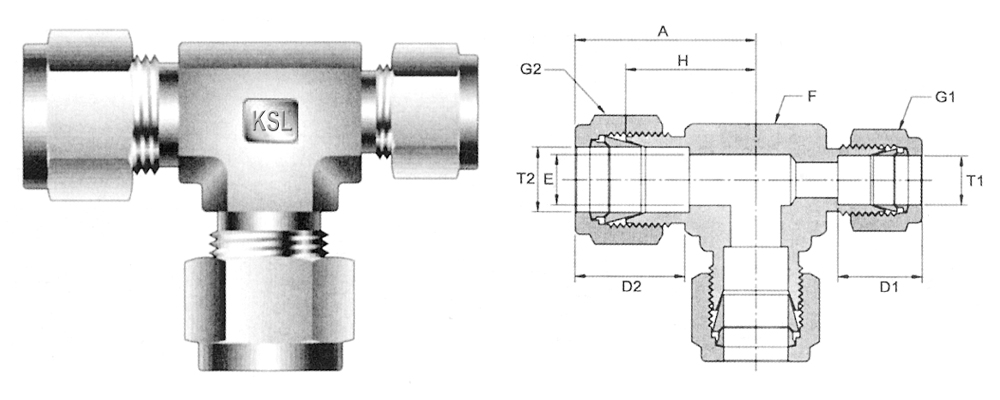

(미터법)

카탈로그

외경

튜브

번호

T2

T1.

A

D1

D2

E1

E2

F

G1

G2

H1

H2

RUBT-03-02

3/8

1/4

30.7

19.6

15.8

7.1

4.8

16

14

17

23.1

21.1

RUBT-04-02

1/2

1/4

36.2

23.4

15.8

10.4

4.8

19

14

22

26

24

RUBT-04-03

1/2

3/8

36.2

23.4

19.6

10.4

7.1

19

17

22

26

26

RUBT-06-03

3/4

3/8

38.4

24.4

19.6

15.7

7.1

28

30

17

28

28

RUBT-06-04

3/4

12

38.4

24.4

23.4

15.7

10.4

28

22

30

28

28

RUBT-08-03

1"

3/8

47.7

31.7

19.6

22.4

7.1

34.5

17

38

35

32.7

RUBT-08-04

1"

1/2

47.7

31.7

23.4

22.4

10.4

34.5

22

38

35

32.7

RUBT-08-06

1"

3/4

47.7

31.7

24.4

22.4

15.7

34.5

38

30

35

32.7
