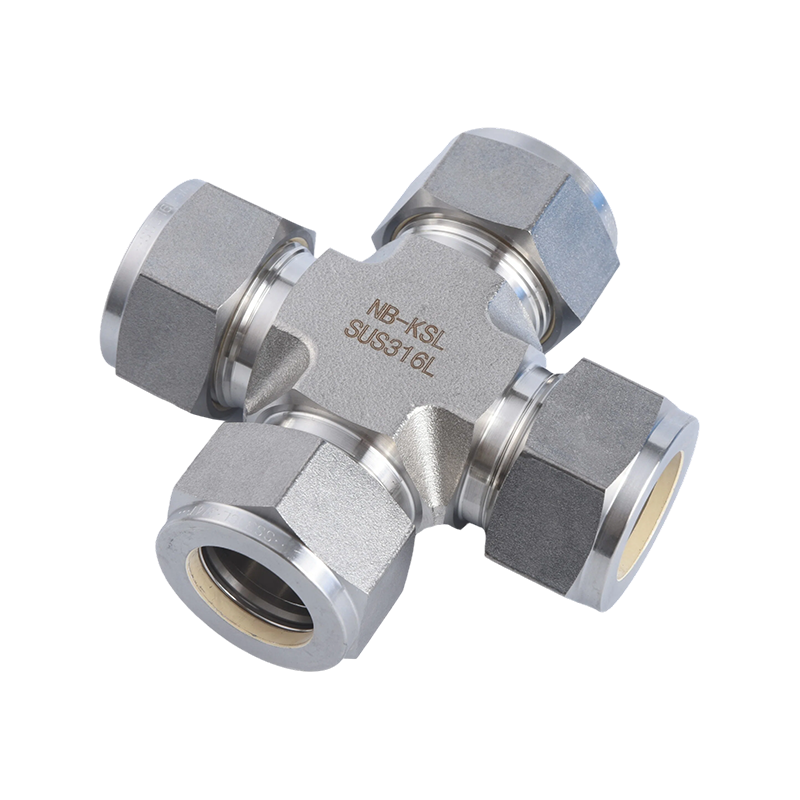

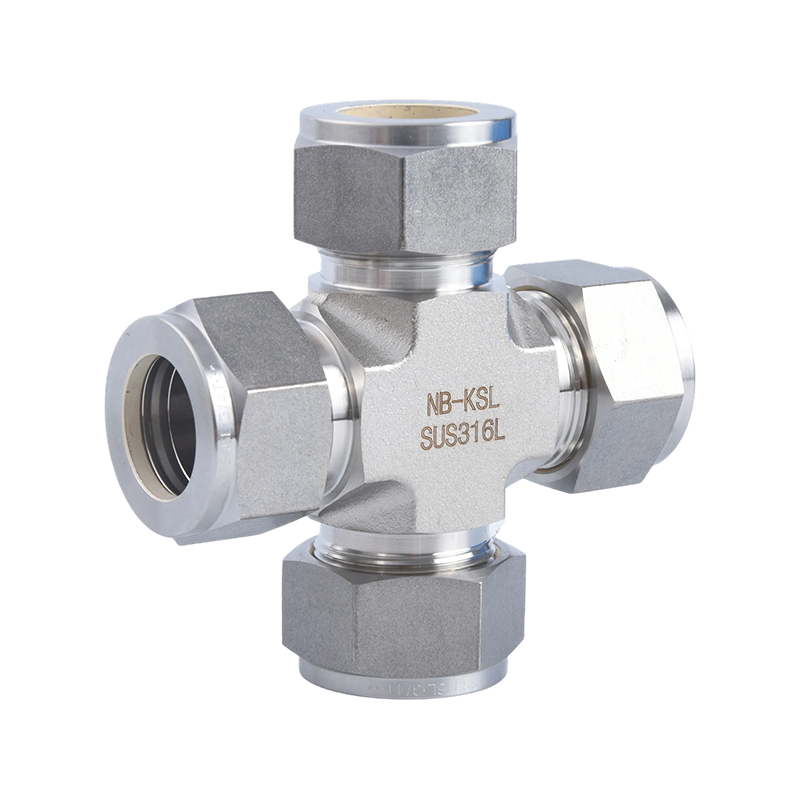

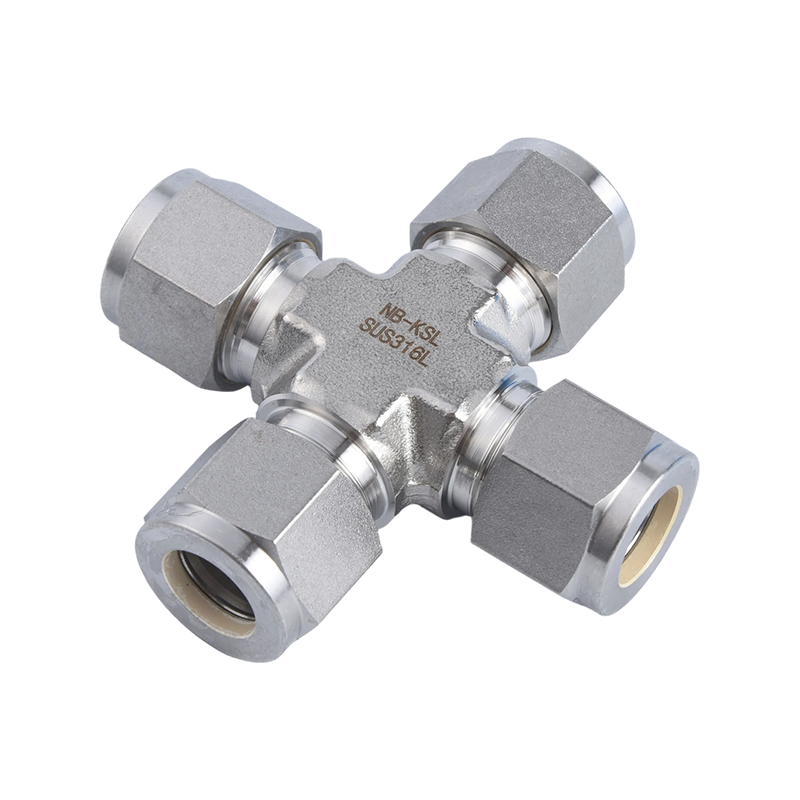

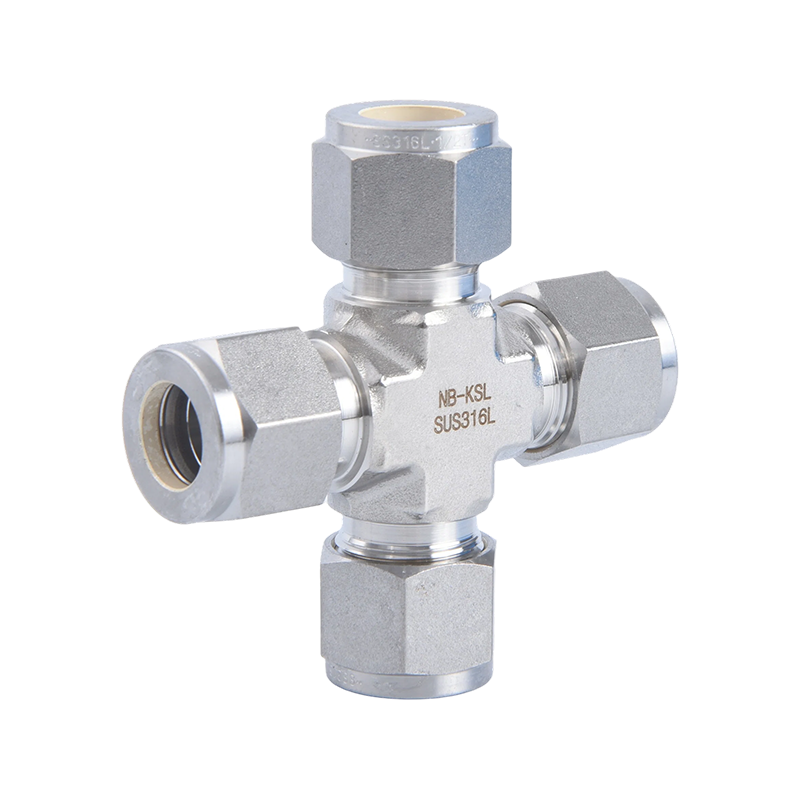

316L 스테인레스 스틸 압축 피팅 4방향 커넥터

복잡한 배관 및 제어 시스템에서 316L 스테인리스강 압축 유니온 크로스는 다방향 유체 분배 또는 수렴을 위한 중요한 접합부 역할을 합니다. 단일 구성 요소를 통해 4방향 유체 통신을 활성화함으로써 시스템 통합을 크게 향상시키는 동시에 공간 요구 사항과 잠재적인 누출 지점을 최소화합니다.

핵심 제품 장점

통합 정밀 단조 구조:
견고한 단조 공정을 통해 고강도 316L 스테인레스 스틸로 제조되었습니다. 용접 부품에 비해 일체형 단조 본체는 뛰어난 구조적 무결성과 기계적 강도를 제공하여 고압 펄스와 외부 기계적 응력에 효과적으로 저항합니다.

최고의 부식 저항성:
초저탄소 316L 소재는 다양한 산성 또는 알칼리성 매체와 염수 분무 환경에 대한 탁월한 내성을 제공합니다. 탁월한 화학적 안정성으로 인해 석유화학 및 해양 엔지니어링과 같은 열악한 환경에 이상적인 선택입니다.

높은 신뢰성의 이중 페럴 씰링:
클래식한 이중 페럴 디자인은 4개 포트 모두에서 금속 간 밀봉을 제공합니다. 이 고유한 기계적 잠금 방법은 지속적인 진동, 심한 압력 변동 또는 극한의 고온에서 저온으로의 순환에서도 누출 없는 성능을 보장합니다.

대칭 흐름 경로 설계:
정밀한 내부 가공을 통해 4개의 흐름 경로가 모두 완벽하게 대칭이 되도록 보장합니다. 이는 유체 분기의 난류 및 압력 손실을 최소화하여 정확한 기기 매개변수 피드백을 위한 안정적인 유체 환경을 제공합니다.

  • 설명
  • 문의하기

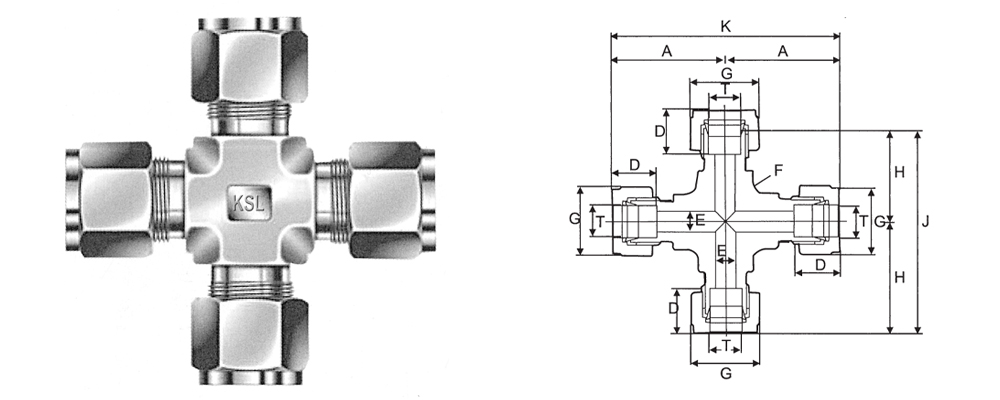

(미터법)

카탈로그 번호

튜브 외경(mm)

A

D

E

F

G

H

J

K

UCR-3-0

3

26

13.5

2.4

12.7

12

19

38

52

UCR-4-0

4

26.7

13.7

3

12.7

12

20

40

53.4

UCR-6-0

6

28.8

15.8

4.8

12.7

14

21

42

57.6

UCR-8-0

8

28.7

16.7

6

12.7

16

21

42

57.4

UCR-10-0

10

31.6

19.6

7.9

17.5

19

24

48

63.2

UCR-12-0

12

36.8

23.8

9.5

20.6

22

26

52

73.6

UCR-16-0

16

38.4

24.4

12.7

24

27

28

56

76.8

UCR-18-0

18

39.3

24.8

15.1

28

30

28.5

57

78.6

UCR-20-0

20

44.5

25.5

15.9

34.5

32

34

68

89

UCR-25-0

25

47.7

31.7

21.8

34.5

38

35

70

95.4
